Thương Hiệu | Asus |
Model | Asus Prime B760M-A D4 |
Kích Cỡ | m-ATX |
CPU Socket | LGA1700 |
Chipset | Intel® B760 Chipset |
Số Khe Ram | 4 |
Bus Ram Hỗ Trợ | DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC |
Dung Lượng Ram Tối Đa Hỗ Trợ | 128GB |
Số Kênh Bộ Nhớ Hỗ Trợ | Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
Số Cổng SATA | 4 x SATA 6Gb/s ports |
M.2 | 2 x M.2 slots |
SATA RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
Chip Xử Lý Âm Thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC |
LAN Chipset | 1 x Realtek 2.5Gb Ethernet |
Tốc Độ LAN | 2.5Gb |

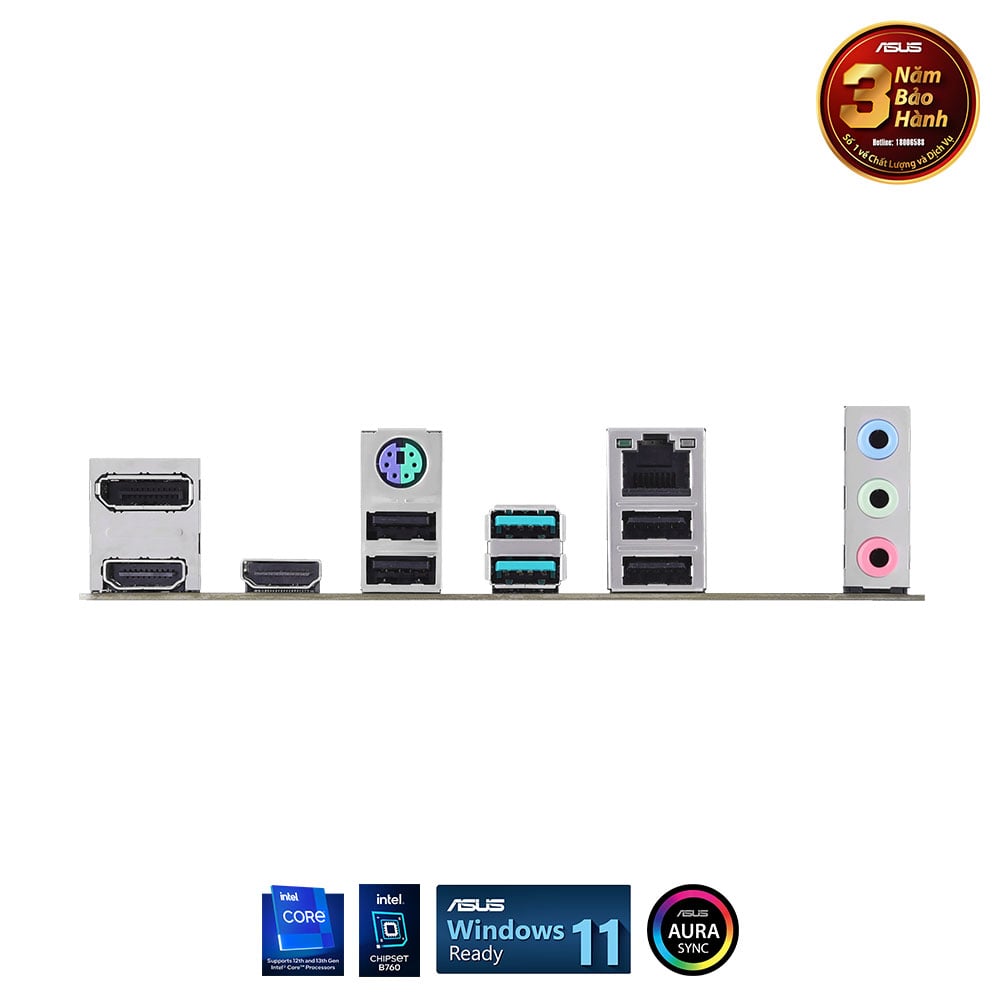

Cổng I/O Phía Sau | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
Onboard USB | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port |
Cổng Kết Nối Khác | 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
Đèn LED Đi Kèm | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers |
Kích Thước (W x L) | 24.4 cm x 24.4 cm |
Chân Cắm Nguồn | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
