Nhà sản xuất | ASRock |
Model | B760M-PRO-RS/D4-WIFI |
CPU hỗ trợ |
|
Chipset | Intel B760 |
Hỗ trợ Ram | 4 x DDR4 non-ECC up to 5333+(OC) MHz (Maximum 128GB) |
Khe cắm mở rộng | 1 x PCIe 4.0 x16 (PCIE1) 1 x PCIe 4.0 x16 (PCIE3) 1 x PCIe 4.0 x1 (PCIE2) 1 x M.2 2230 WiFi |
Hỗ trợ ổ cứng | 1 x Hyper M.2 2242/ 2260/ 2280 PCIe Gen4 x4 1 x Hyper M.2 2280 PCIe Gen4 x4 4 x SATA 3 6 Gb/s Support Raid 0, 1, 5, 10. |
LAN/Wireless |
|
Audio | Realtek ALC897 Audio Codec Nahimic Audio |
Cổng kết nối bên trong | -Fan and Cooling 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) 4 x Chassis/Water Pump Fan Connectors (4-pin) -Power 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector -Storage 2 x M.2 4 x SATA 3 6Gbps -USB 2 x USB 2.0 Headers 1 x USB 3.2 Gen1 Headers -Miscellaneous 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Heade 3 x Addressable LED Headers 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) 1 x Front Panel Type C USB 3.2 Gen1 Header |

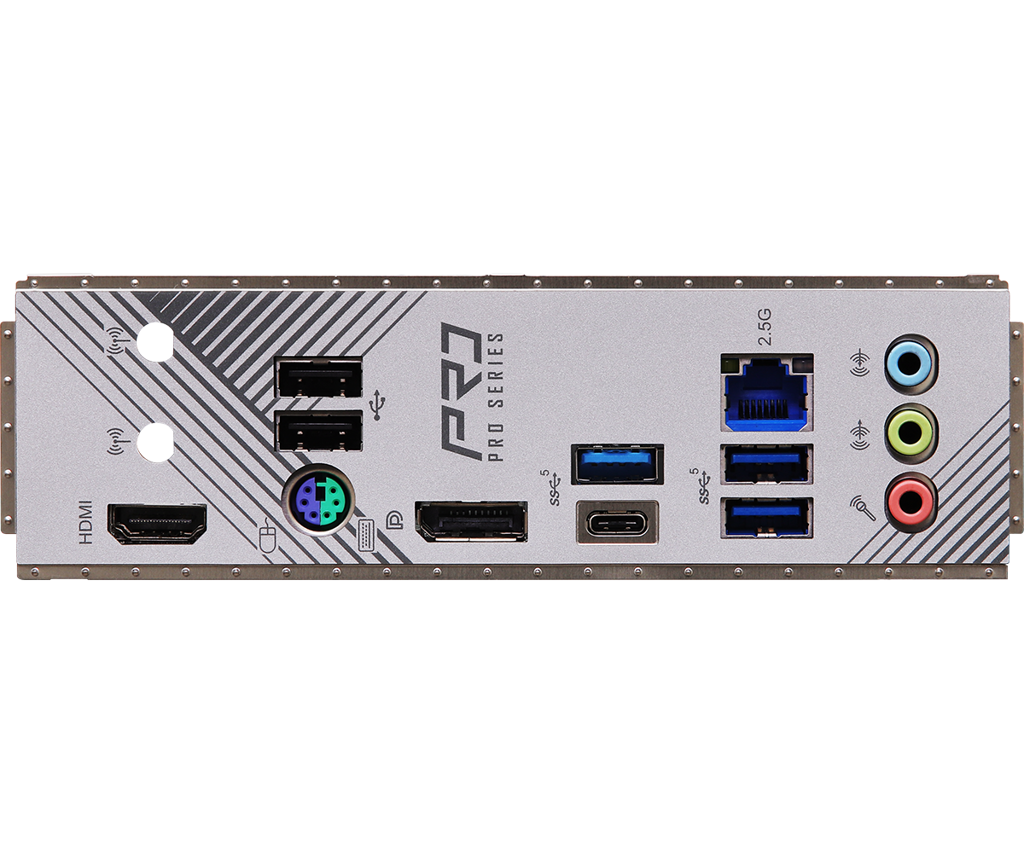

Cổng kết nối phía sau | 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C 3 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Ports 1 x RJ-45 HD Audio Jacks |
Kiểu dáng | mATX (244 x 244 mm) |
Bảo hành | 3 năm |
