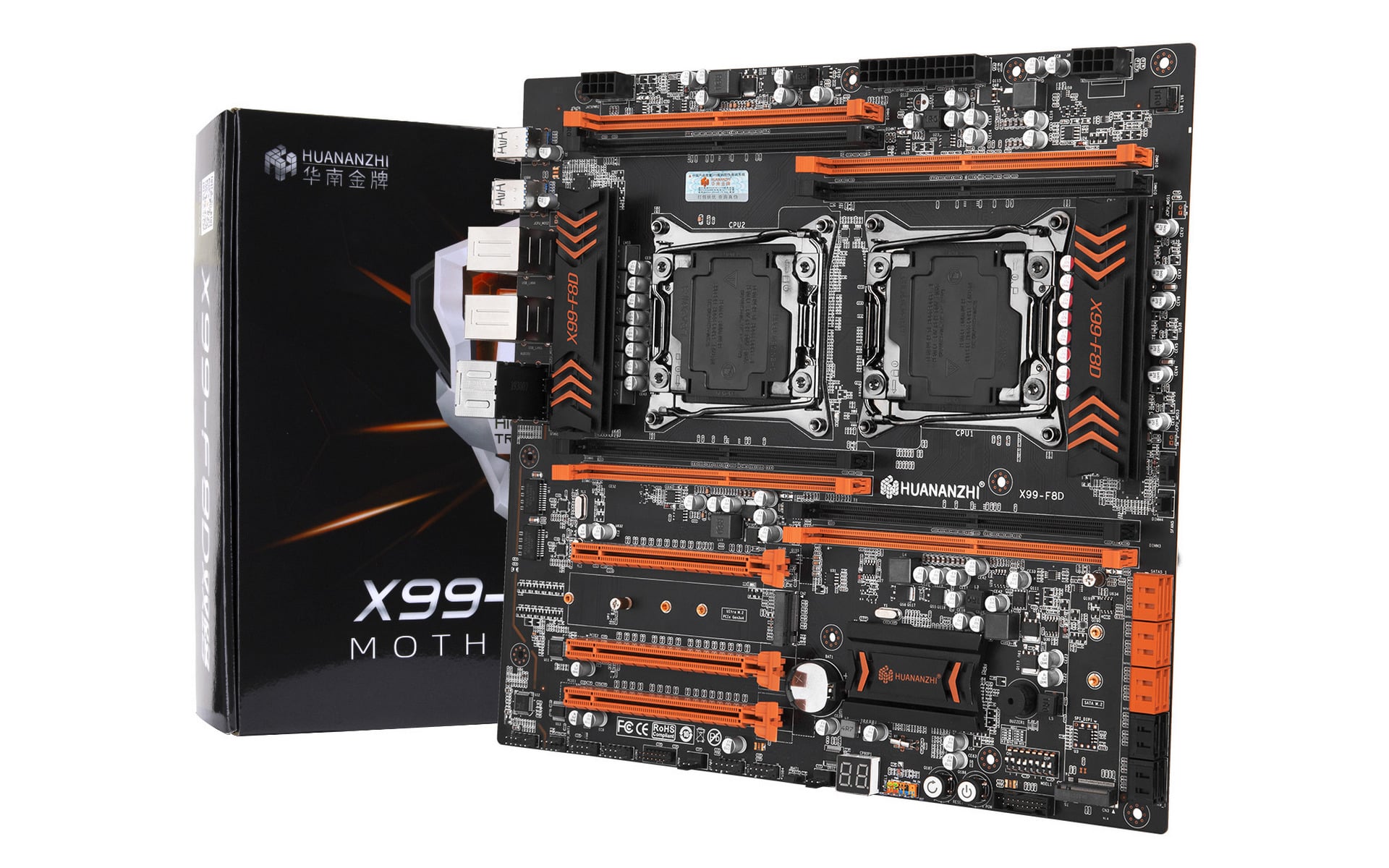

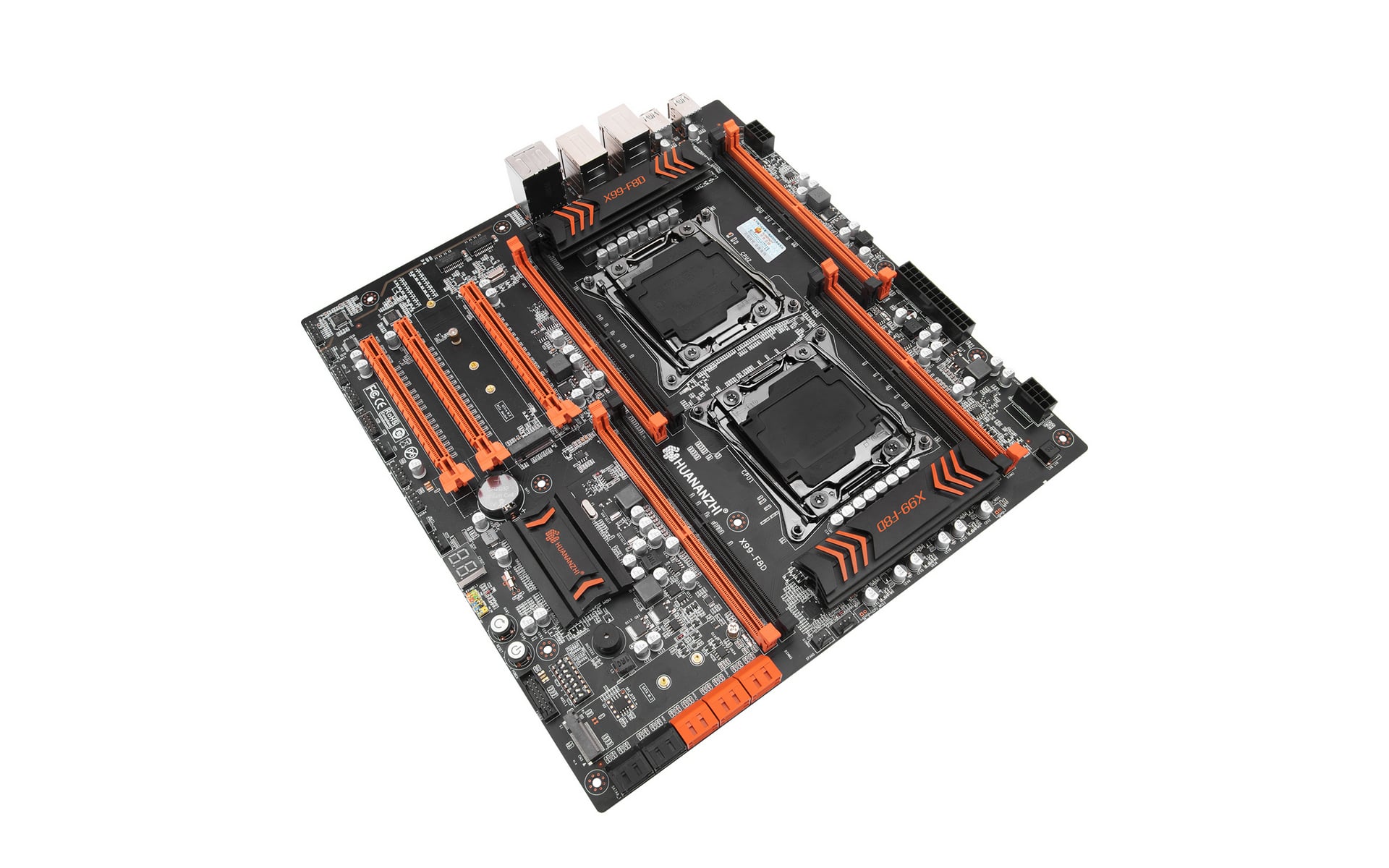

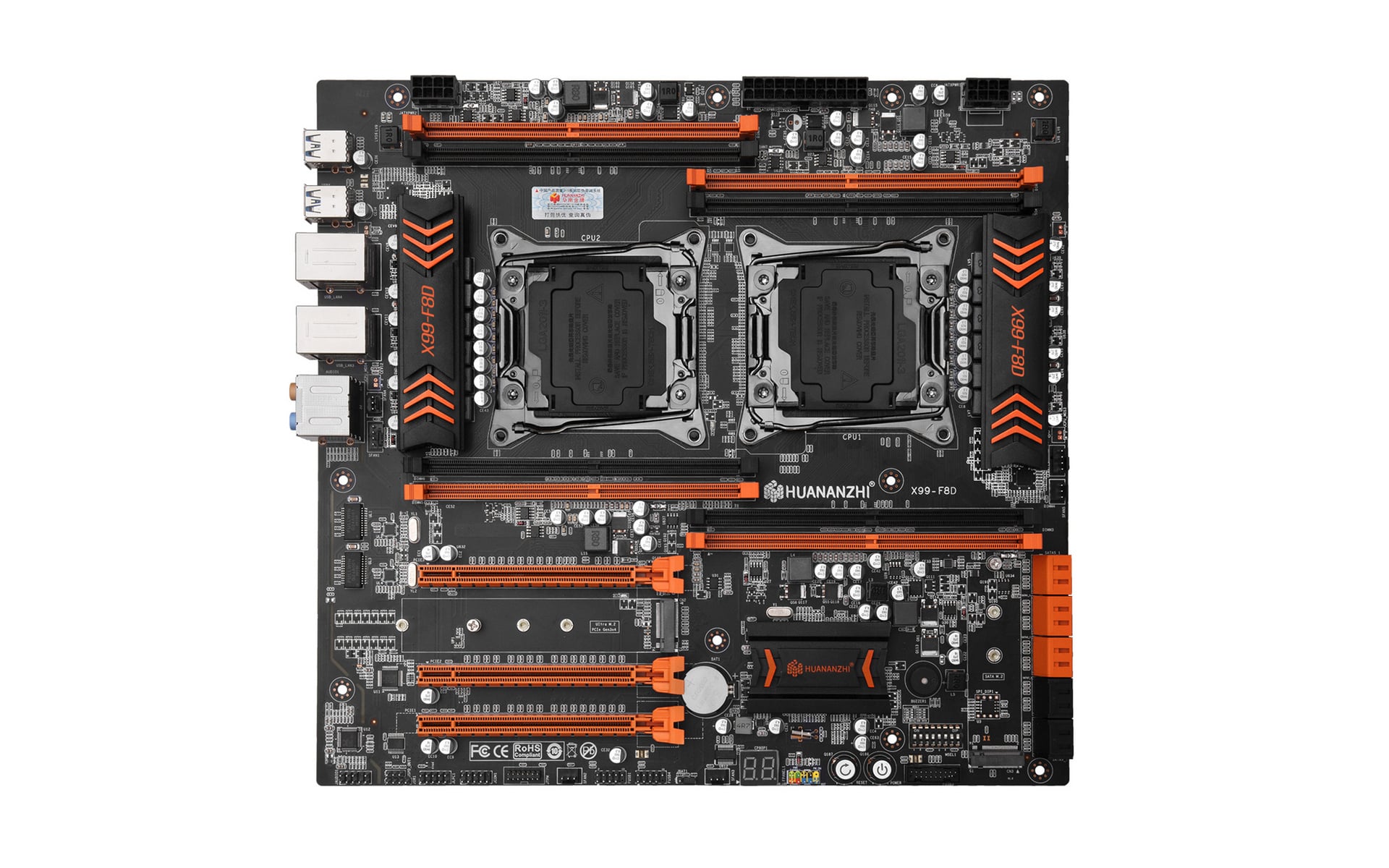

MAINBOARD | HUANANZHI X99-F8D |
|---|---|
PLATFORM | Intel® X99, 2 x LGA2011-3, Non supports: Core™ Processor and Xeon® E5-16XX v3 series. |
MEMORY | 8 x DIMM, Max. 8 x 32GB, DDR4 2400/2133/1866/1600 MHz, Supports ECC or non-ECC Memory, 4 Channel Memory Architecture |
GRAPHIC | No display output port, Supports NVIDIA® and AMD® Graphics Cards |
AUDIO | Realtek® ALC887 7.1-Channel, High Definition Audio CODEC |
LAN | Realtek® RTL8111H, 2 x 10/100/1000 Mbit/s LAN Controller(s) |
EXPANSION SLOTS | 3 x PCIe 3.0 x16 |
STORAGE | 1 x M.2 Socket 3, NVMe, 1 x M.2 Socket 3, SATA, 10 x SATA3.0 (6GB/s) port(s) |
INTERNAL I/O PORTS | 2 x USB 2.0 connector support additional 2 x USB 2.0 1 x USB 3.0 connector support additional 2 x USB 3.0 2 x CPU Fan connector(s) (1 x 4-pin) 4 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x POST codes display LED |

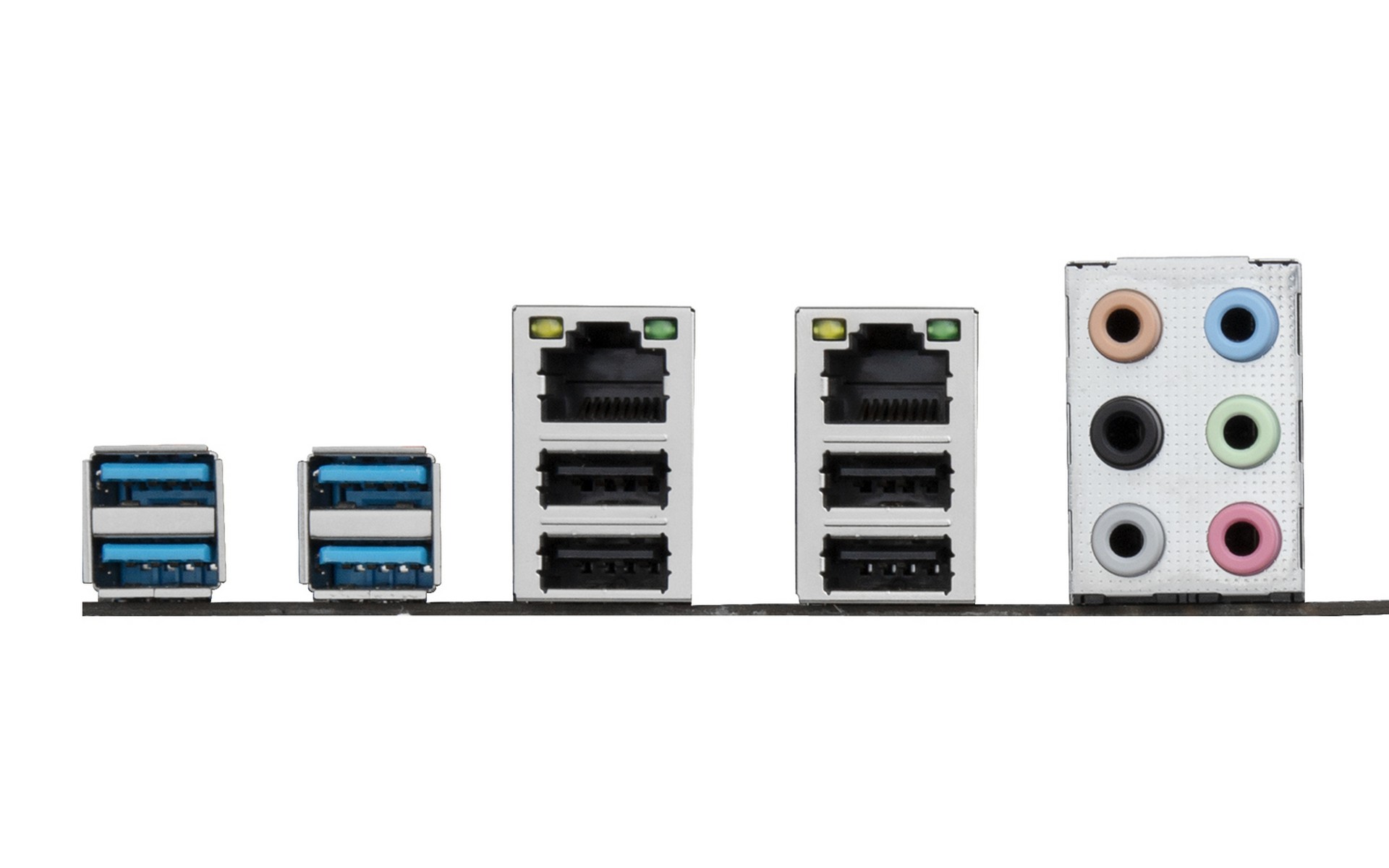

BACK I/O PORTS | 1 x PS/2 Keyboard and Mouse 2 x LAN (RJ45) port(s) 4 x USB 2.0 4 x USB 3.0 6 x Audio jack(s) |
FORM FACTOR | E-ATX Form Factor; 30cm x 32cm |
