Sản phẩm | Bo mạch chủ |
Tên Hãng | MSI |

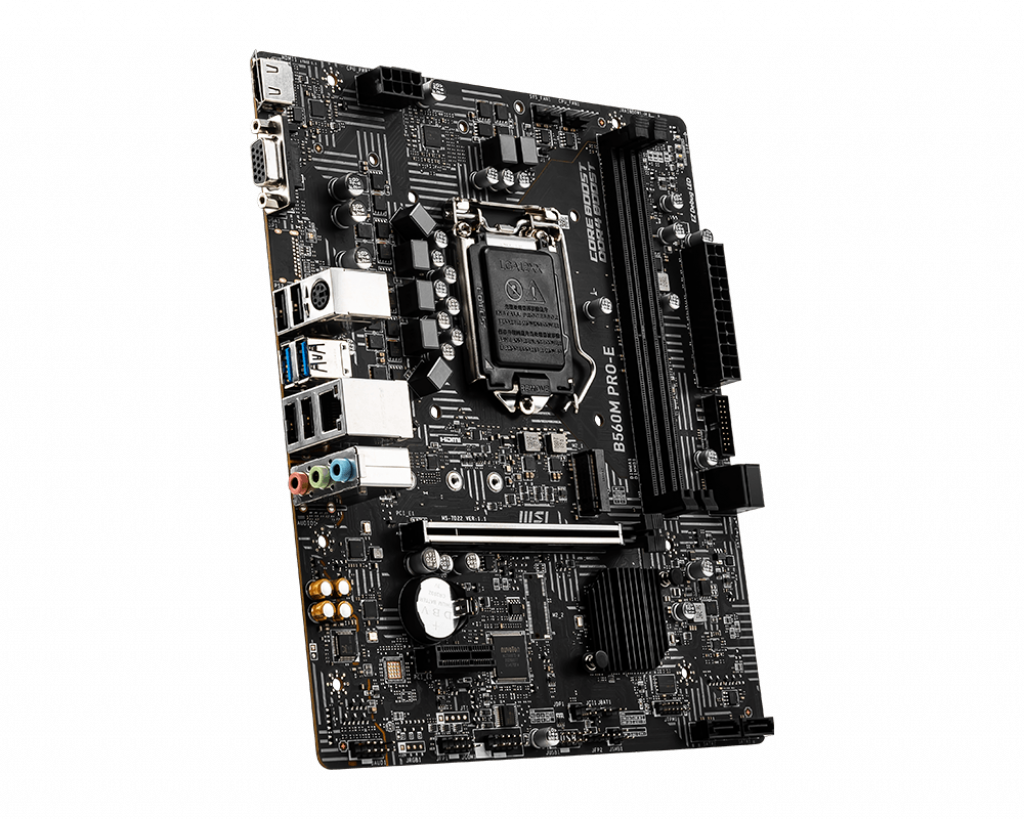

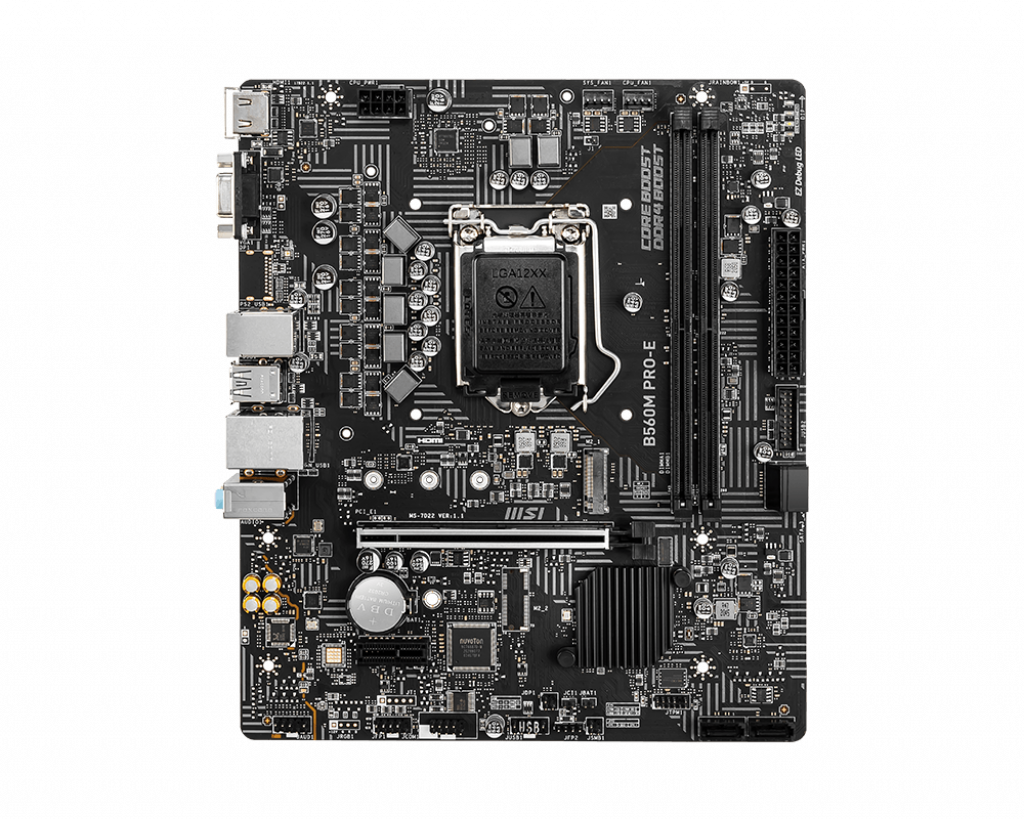

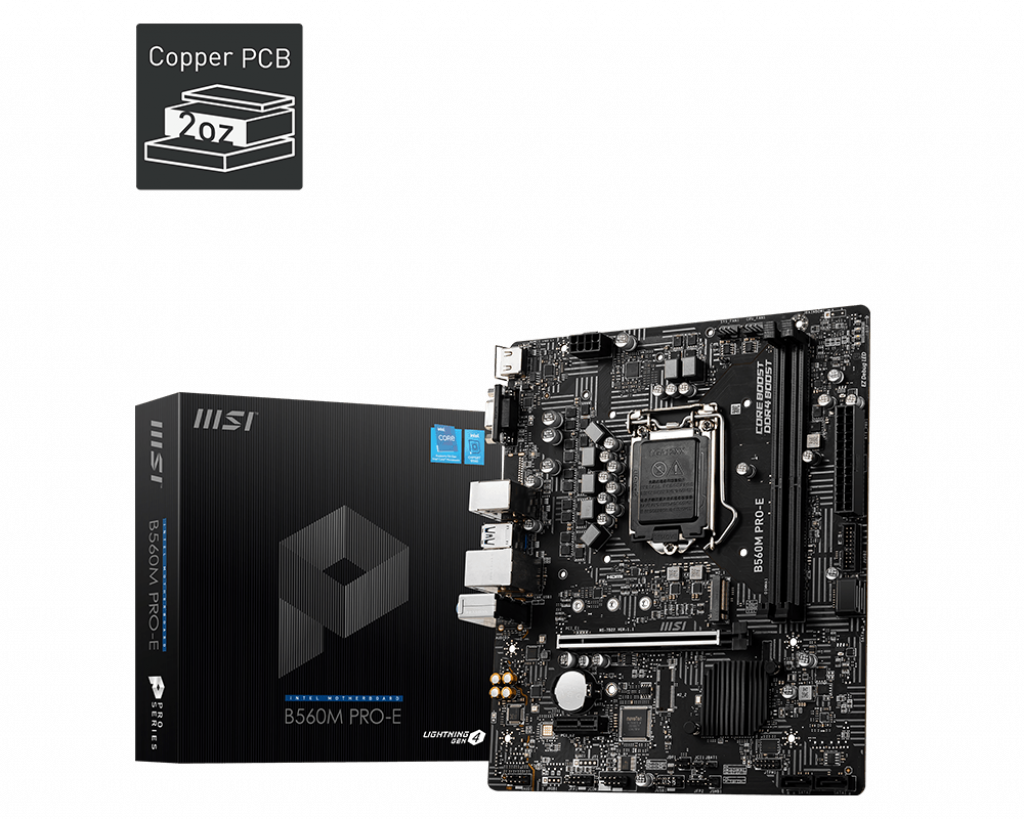

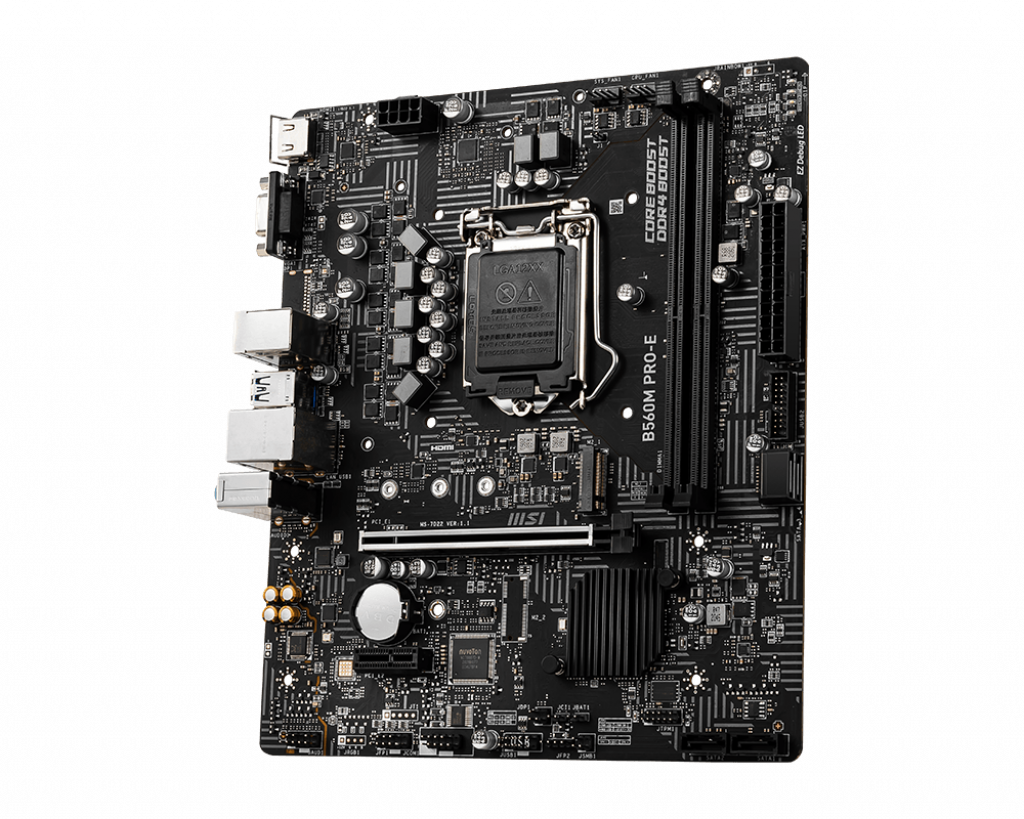

Model | B560M PRO-E |
CPU hỗ trợ | Intel |
Chipset | B560 |
RAM hỗ trợ | 2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4800 MHz
1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP) |
Khe cắm mở rộng | 1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
1x PCIe 3.0 x1 slot (From PCH) |
Ổ cứng hỗ trợ | 4x SATA 6Gb/s ports (From B560 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From B560 Chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices |
Cổng kết nối (Internal) | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector |

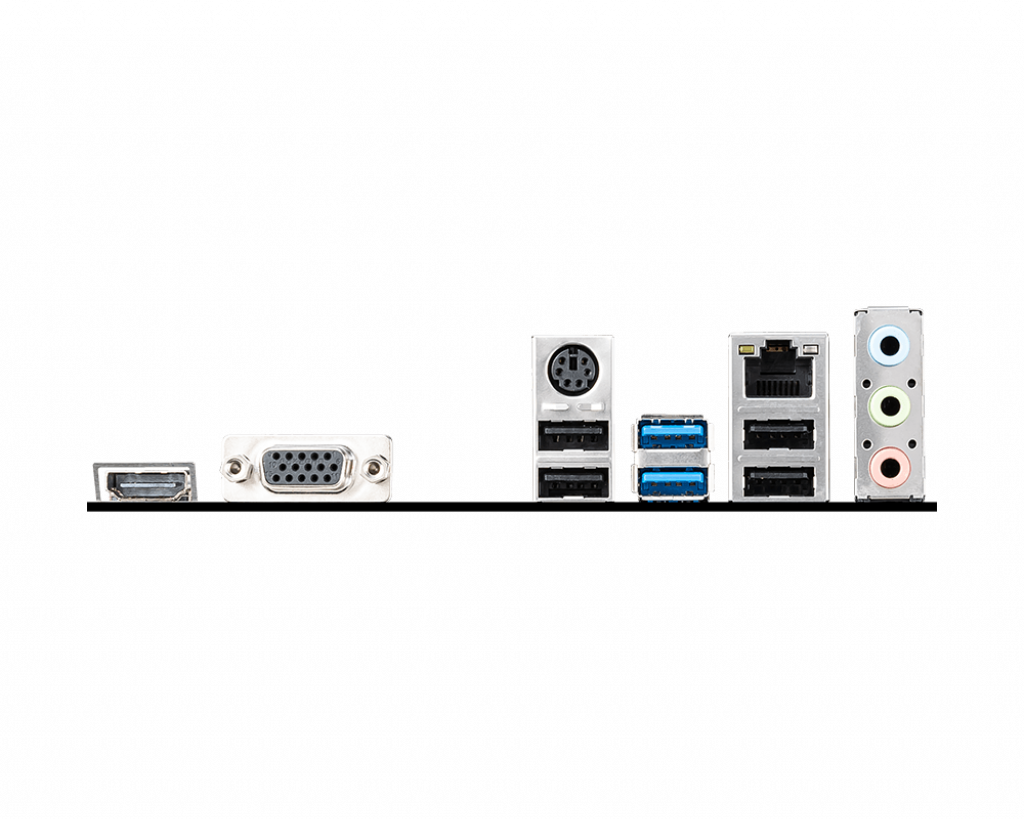

Cổng kết nối (Back Panel) | 1 x HDMI
1 x PS2
1 x LAN port
1 x Audio connector
4 x USB 2.0
1 x VGA
2 x USB 3.2 Gen 1 5Gbps Type A |
LAN / Wireless | 1x Intel® I219V 1Gbps LAN controller |
Kích cỡ | mATX Form Factor
9.29 in. x 7.95 in. (23.6 cm x 20.2 cm) |
