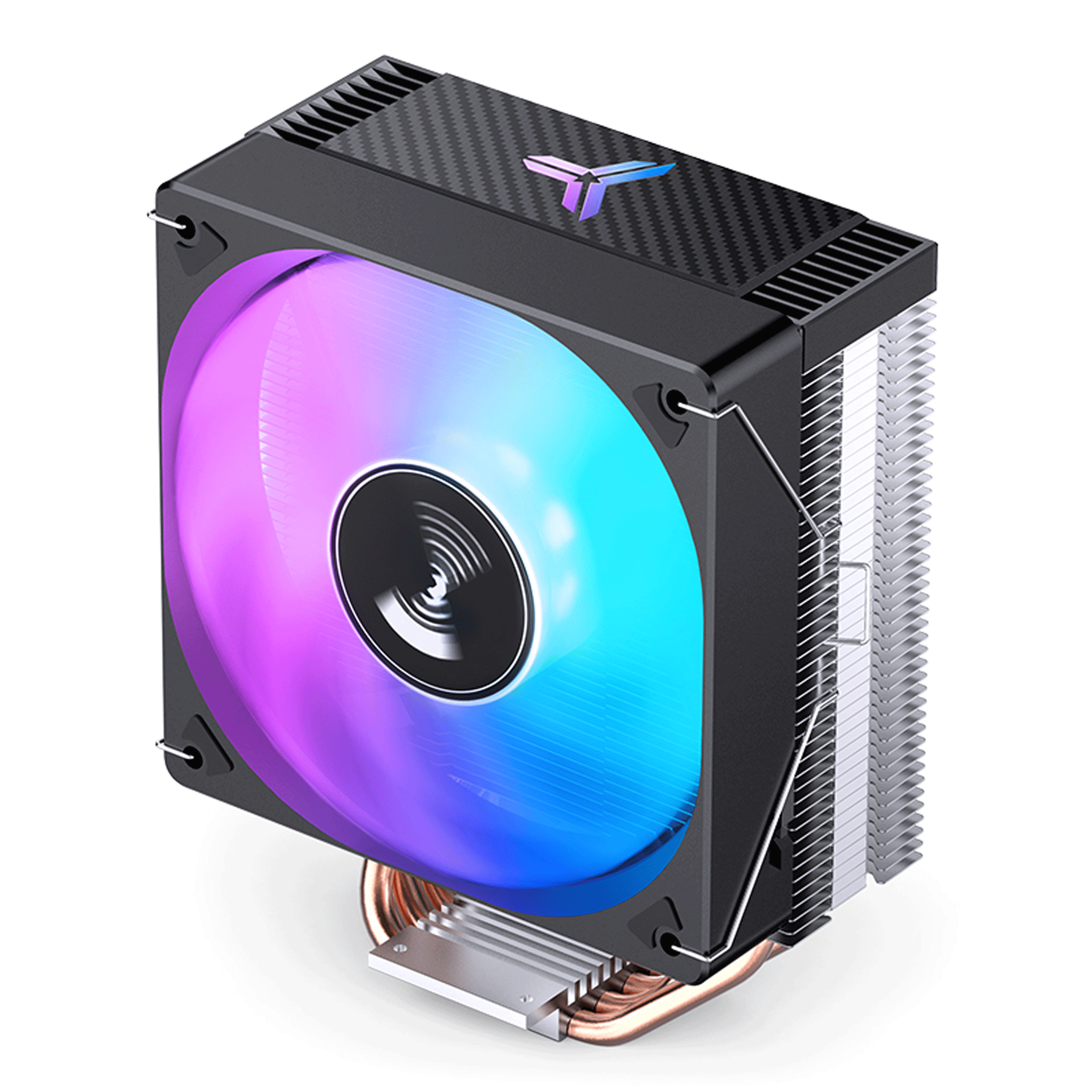

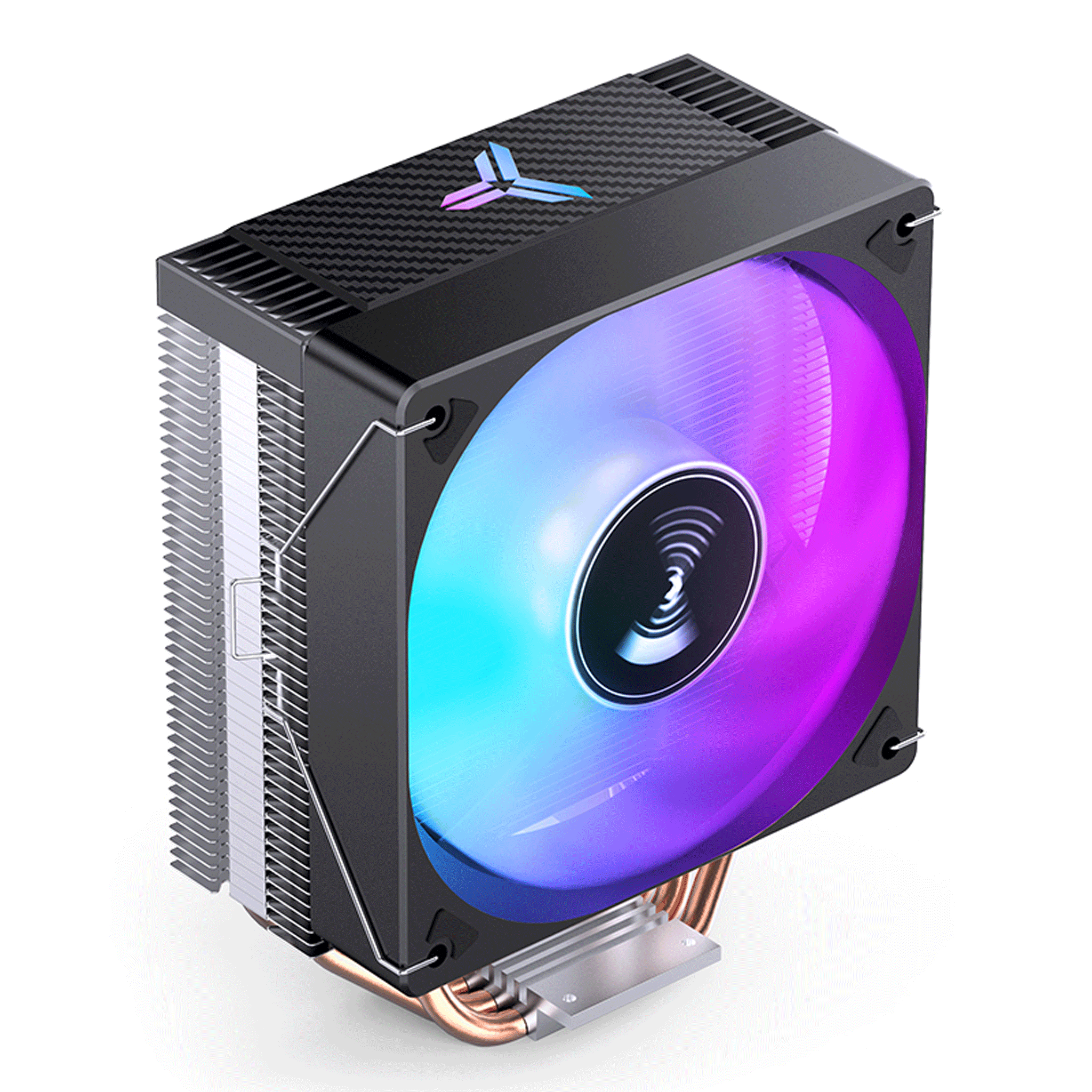

| Model | CR-1000E Black |
| Dimensions | 120 mm (L) * 65 mm (W) * 154 mm (H) |
| Heatpipe Size | Φ6mm * 4 PCS |
| Fan Dimensions | 120 mm * 120 mm * 25 mm |
| Fan Speed | 600-1500 RPM (±10%) |
| Fan Air Flow | 28.12-59.48 CFM (MAX) |
| Fan Air Pressure | 0.26-1.81 mmH2O (MAX) |
| Fan Noise Level | 22-32 dB(A) (MAX) |
| Fan Bearing Type | Hydraulic bearings |
| Fan MTTF | ≥20000h (Room Temp: 25℃) |
| Connector | PWM 4PIN |
| Rated Voltage | LED; FAN: 12V |
| Rated Current | LED; FAN: 0.32A |
| Power Consumption | LED; FAN: 3.84W |
| Scope of Application | INTEL: LGA 115X/1200/1700 |
