Compatibility | Intel LGA1851/1700/1200/1151/1150/1155/1156 AMD AM5/AM4 |
TDP | 220W |
Overall Dimension | 120×75×152mm (L×W×H) |

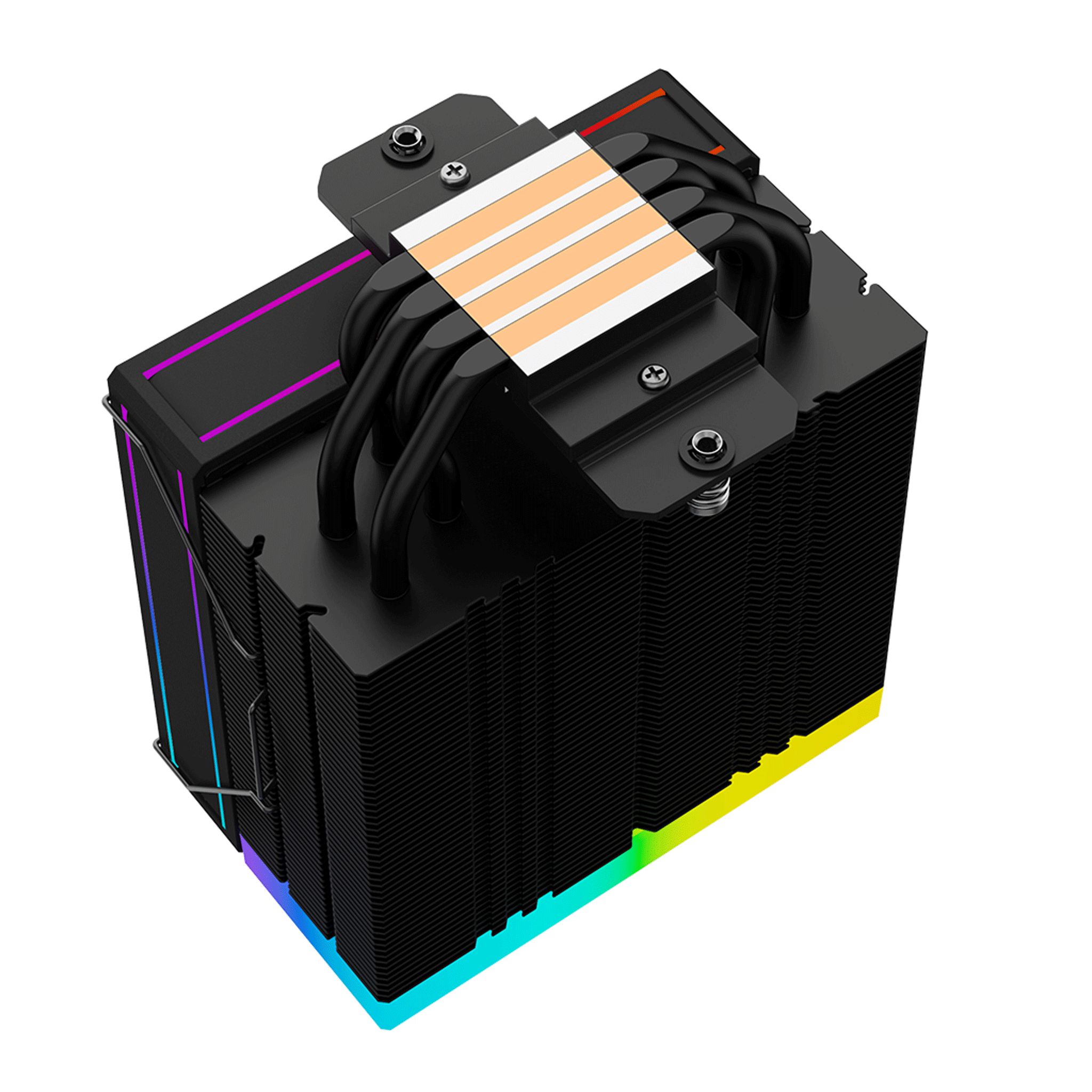

Heatsink Material | 4 Copper Heatpipe + Aluminum Base + Aluminum Heatsink |
Weight | 730g (heatsink+fan) |
Fan Dimension | 120×120×27mm (2pcs) |
Fan Speed | 500±200 ~ 2000±10% RPM |
Max. Air Flow | 78CFM |
Max. Static Pressure | 2.68mmH2O |
Noise | 29.9dB(A) Max. |
Rated Voltage | 12VDC (4pin PWM)/5V 3Pin ARGB |
Operating Voltage | 10.8 ～ 13.2VDC |
Started Voltage | 7VDC |
Rated Current | 0.25A |
Power Input | 3W |
Bearing Type | FDB |
Connector | 4Pin PWM/5V 3Pin ARGB |
