Sản phẩm | Bo mạch chủ |
Tên Hãng | MSI |

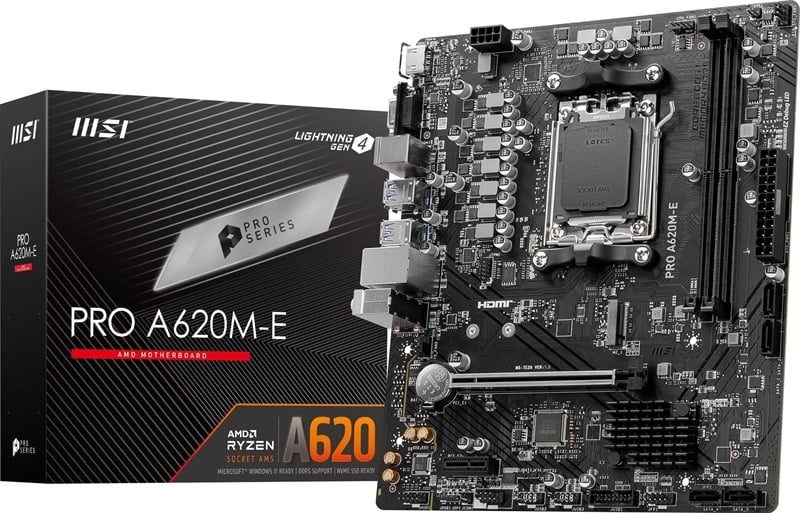

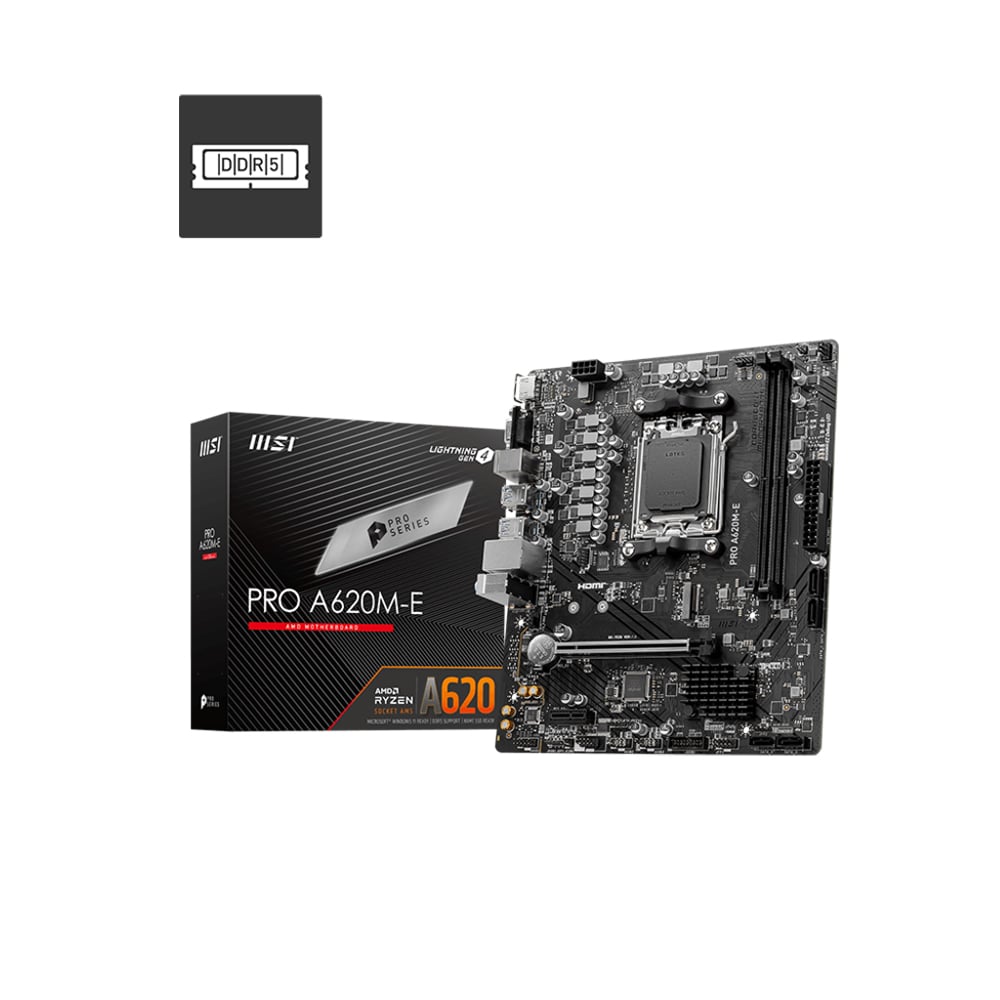

Model | PRO A620M-E |
CPU hỗ trợ | AMD |
Chipset | AMD A620 |
RAM hỗ trợ | 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz |
Khe cắm mở rộng | 1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Ổ cứng hỗ trợ | 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G |
Cổng kết nối (Internal) | 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports |
Cổng kết nối (Back Panel) | - HDMI™
- VGA
- Keyboard/Mouse
- USB 3.2 Gen 1 5Gbps (Type-A)
- LAN port
- Audio connectors
- USB 2.0
|
LAN / Wireless | Realtek® RTL8111H Gigabit LAN |
Kích cỡ | mATX
211mmx243.84mm |
