Color | Black |
|---|---|
Type | ATX |
Maximum Power | 850 W |
Fans | 1 x 120 mm rifle bearing fan |
Main Connector | 24Pin |
PCI-Express Connector | 3 x 6+2-Pin |
SATA Power Connector | 7 |
Max PSU Length | 151 mm |
Modular | Full Modular |
Energy-Efficient | 80 PLUS GOLD Certified |
PSU Noise Level | Cybenetics A- |
Input Voltage | 100 - 240 V |
Input Frequency Range | 47 - 63 Hz |
Input Current | 10A-5A |
Output | +3.3V@20A, +5V@20A, +12V@70.8A, +5VSB@3A |

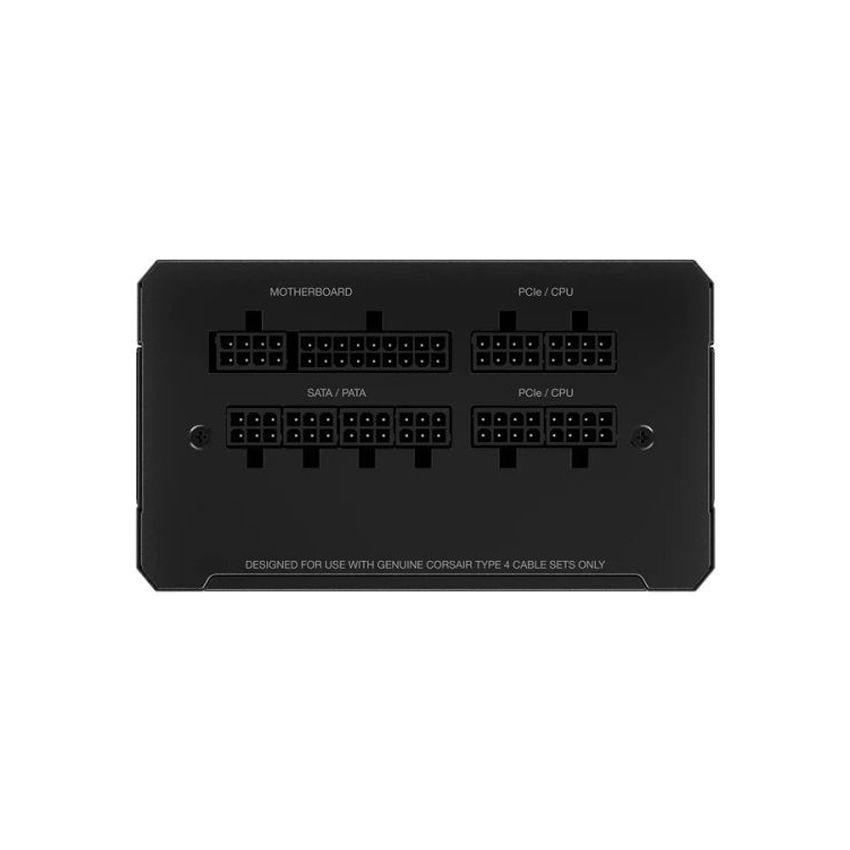

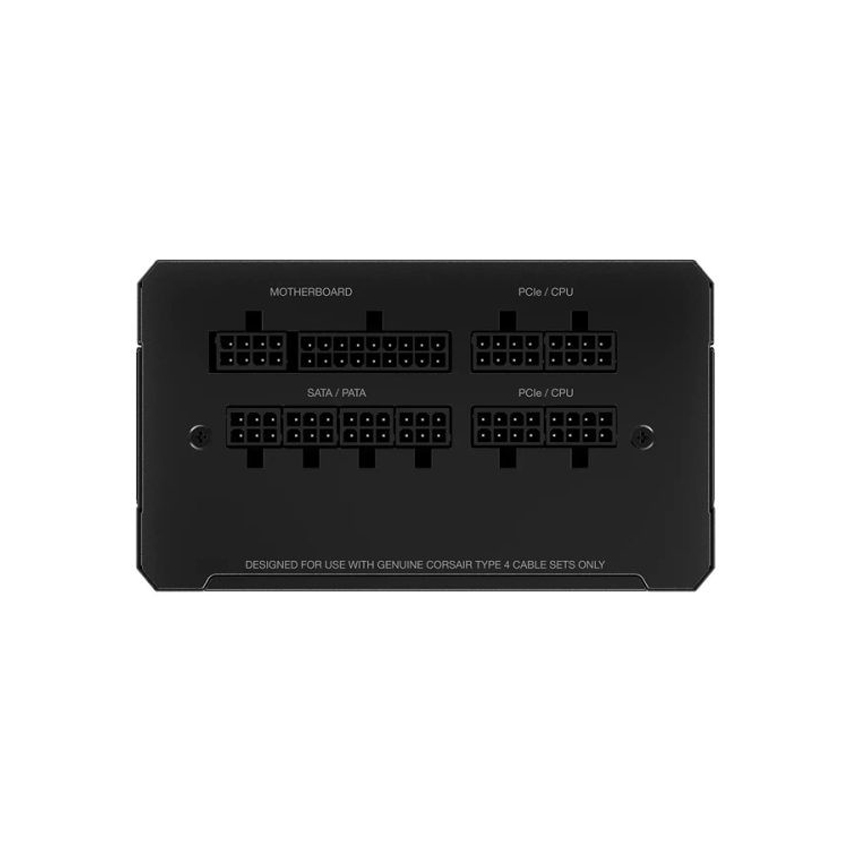

Connectors | 1 x 24-pin ATX (24-pin) 2 x ATX 12V/EPS12V (4+4-pin) 3 x PCIe (6+2) 7 x SATA 4 x PATA |
Cable Spec | 1 x Modular ATX Cable (24-PIN) (24): One cable (610mm) 2 x Modular EPS/ATX12V Cable (8-PIN) (4+4): One Cable (650mm) 1 x Modular PCIe Cable (8-PIN) (6+2)/(6+2): Two cables (750mm) 1 x Modular PCIe Cable (8-PIN) (6+2): One cable (600mm) 1 x Modular SATA Cable (3 SATA)(straight): Three Cables (700mm) 1 x Modular SATA Cable (4 SATA)(right angle): Four Cables (800mm) 1 x Modular PATA Cable (4 PATA): Four Cables ( 750mm) |
