Thương Hiệu | ASROCK |
Model | B760M PG Sonic WiFi |
Kích Cỡ | M-ATX |
CPU Socket | LGA1700 |
Chipset | Intel® B760 |
Số Khe Ram | 4 x DDR5 DIMM Slots |
Bus Ram Hỗ Trợ | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* |
Dung Lượng Ram Tối Đa Hỗ Trợ | 128GB |
Số Kênh Bộ Nhớ Hỗ Trợ | Dual Channel DDR5 Memory Technology |
Số Cổng SATA | 4 x SATA3 6.0 Gb/s Connectors |
M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Chip Xử Lý Âm Thanh | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
LAN Chipset | Dragon RTL8125BG |
Tốc Độ LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |

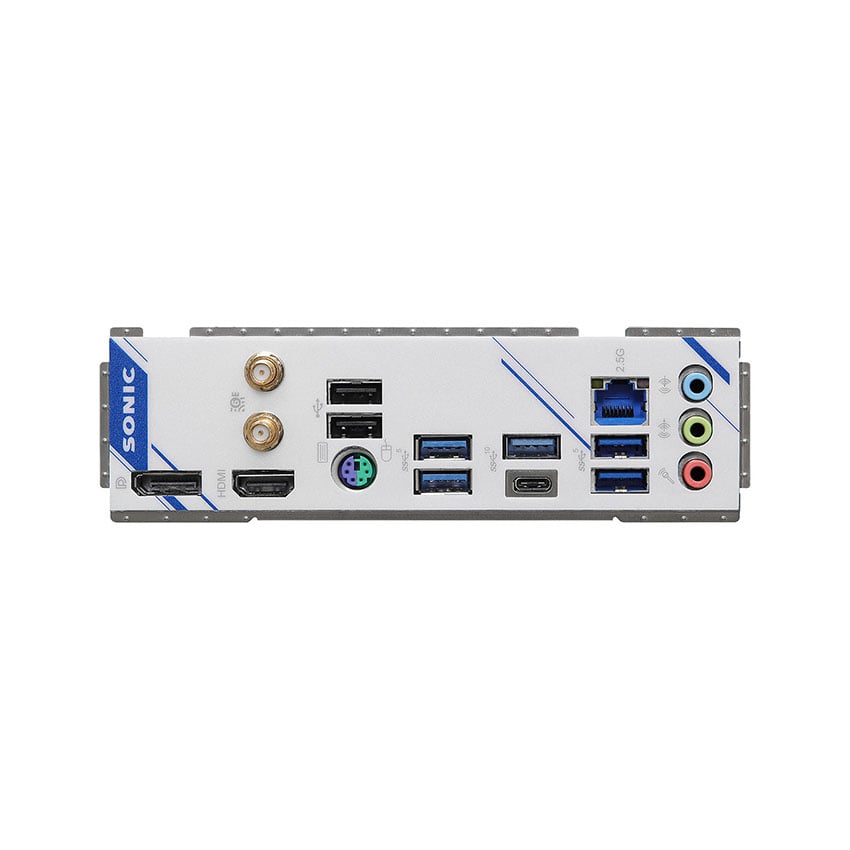

Cổng I/O Phía Sau | - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
Onboard USB | - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
Cổng Kết Nối Khác | 1 x eDP Signal Connector - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) |
Đèn LED Đi Kèm | 1 x RGB LED Header* 3 x Addressable LED Headers |

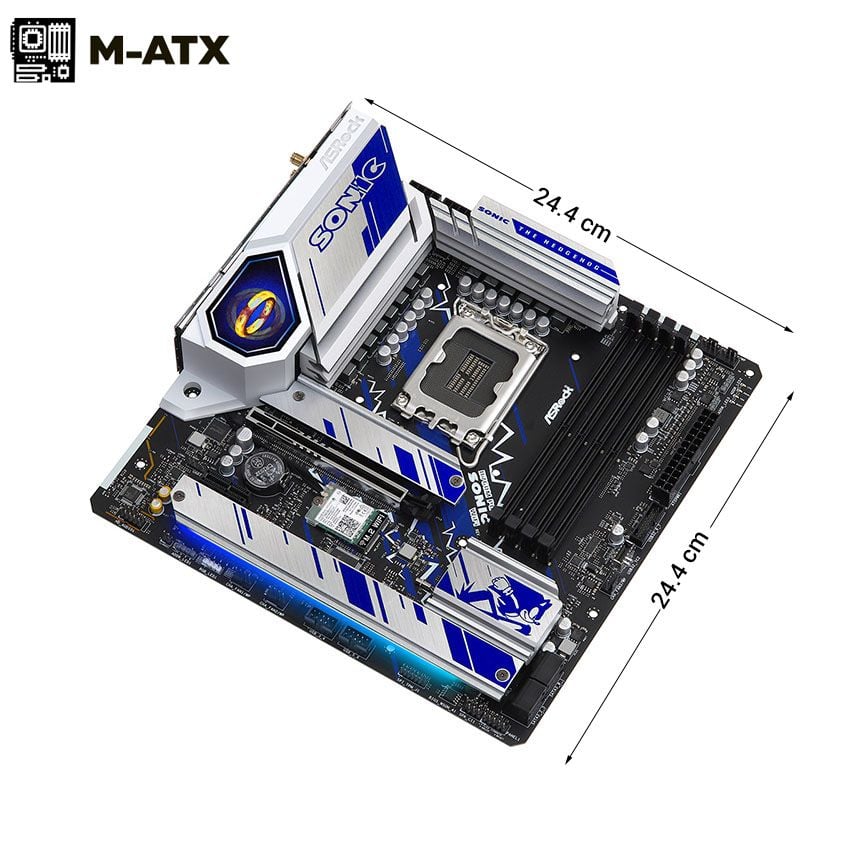

Kích Thước (W x L) | 24.4 cm x 24.4 cm |
Chân Cắm Nguồn | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
