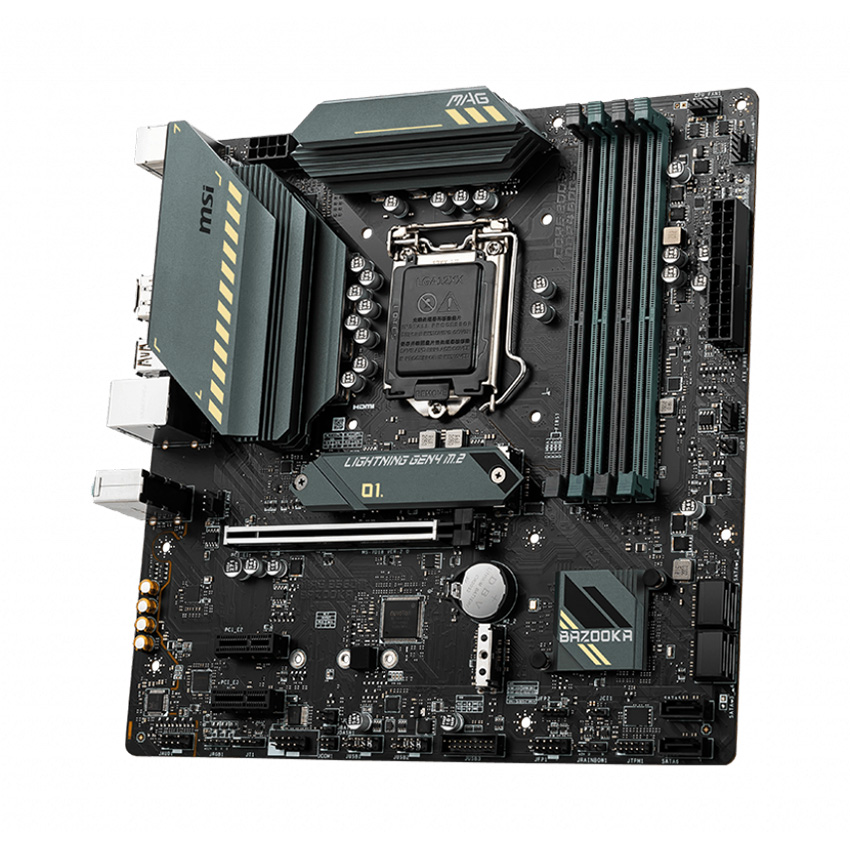

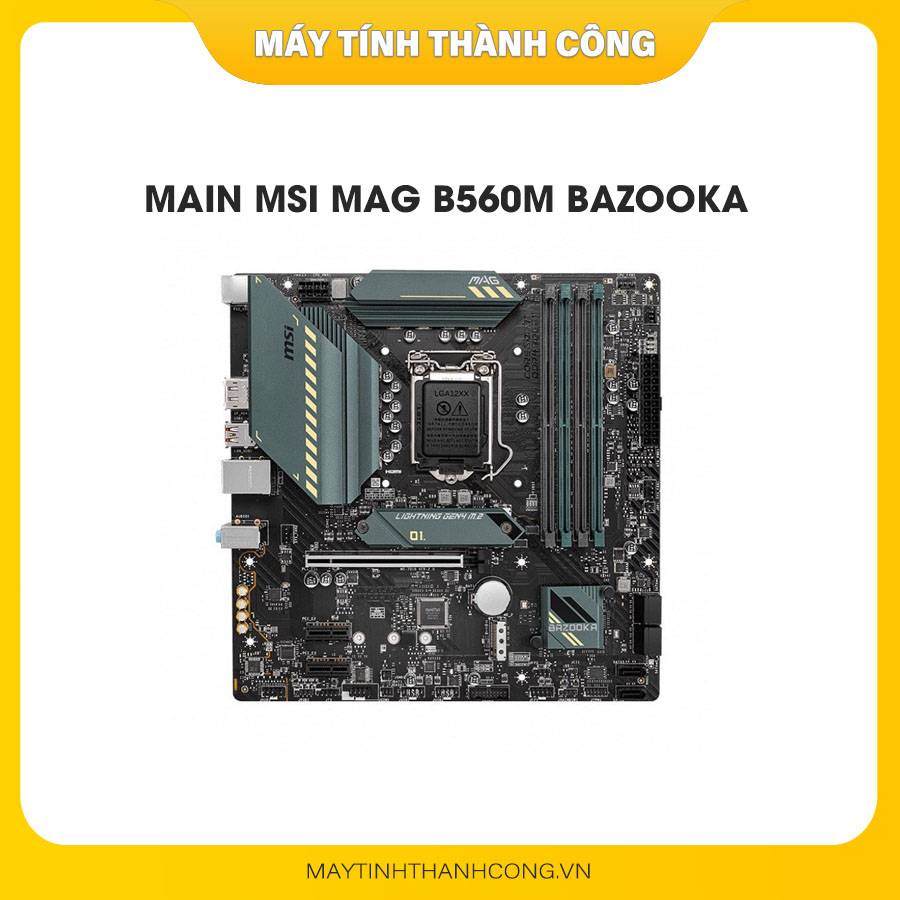

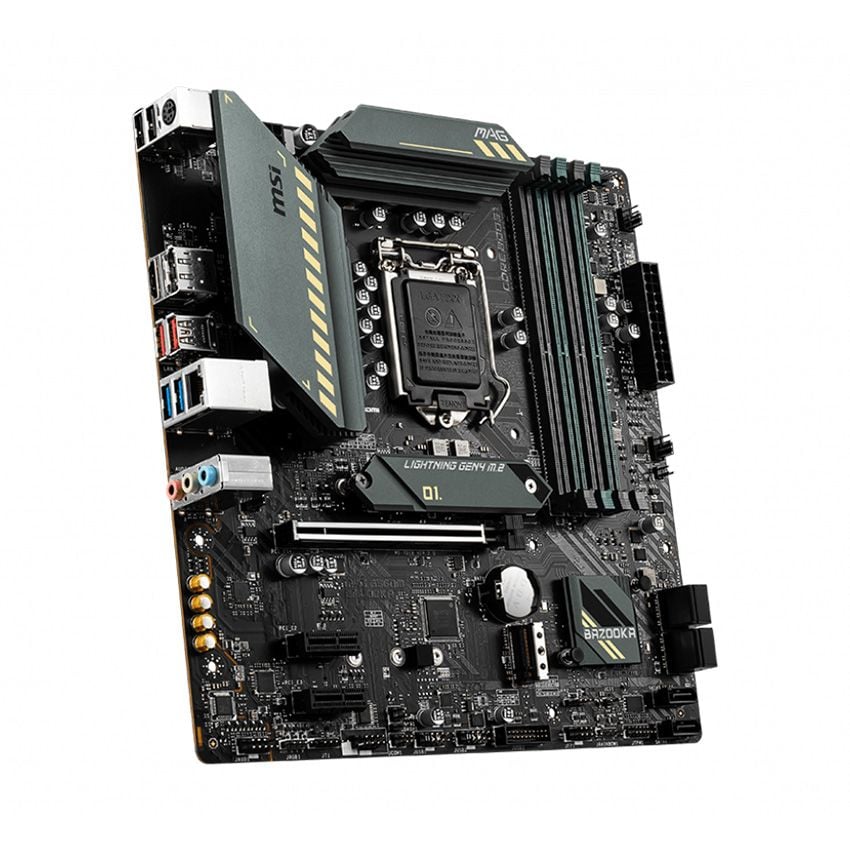

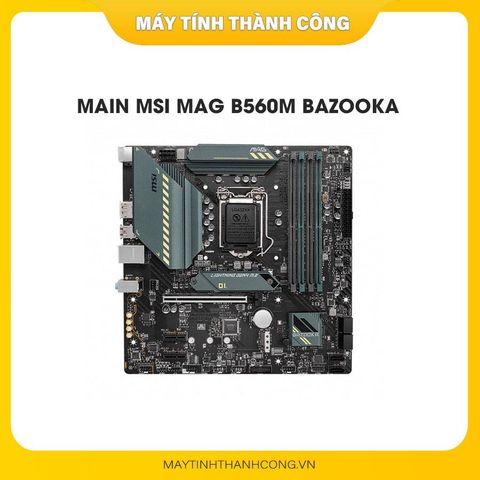

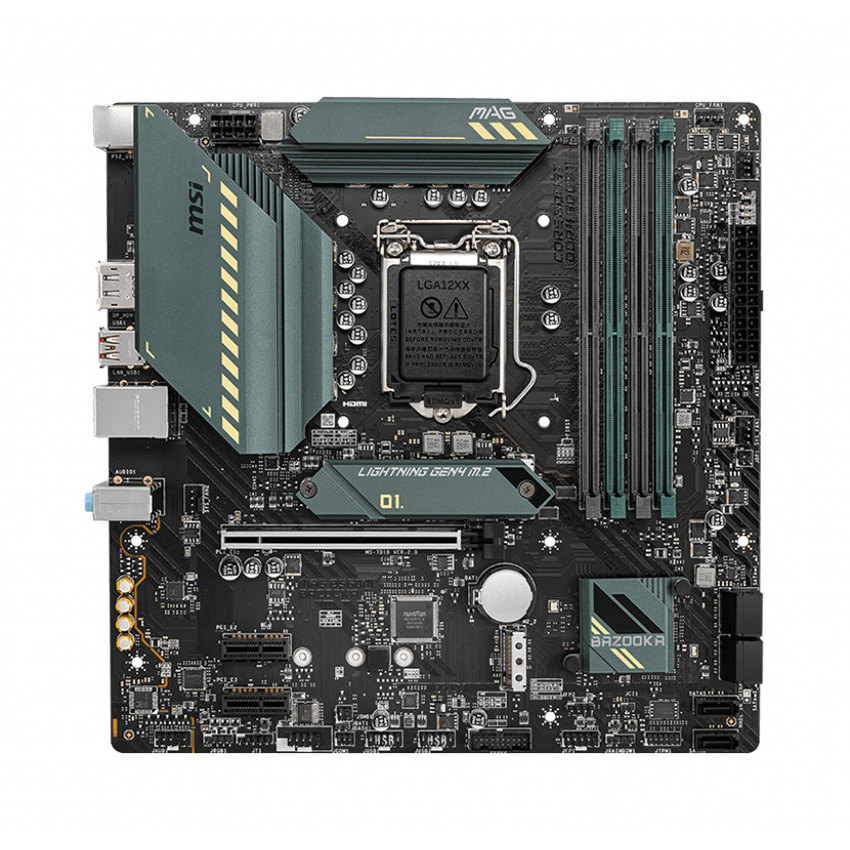

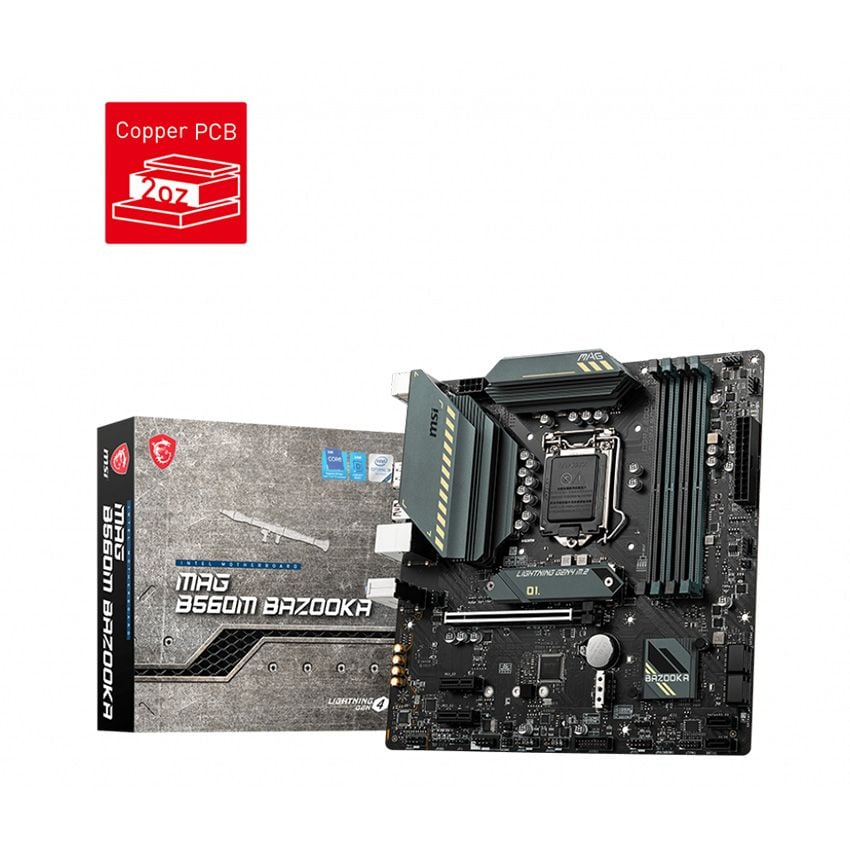

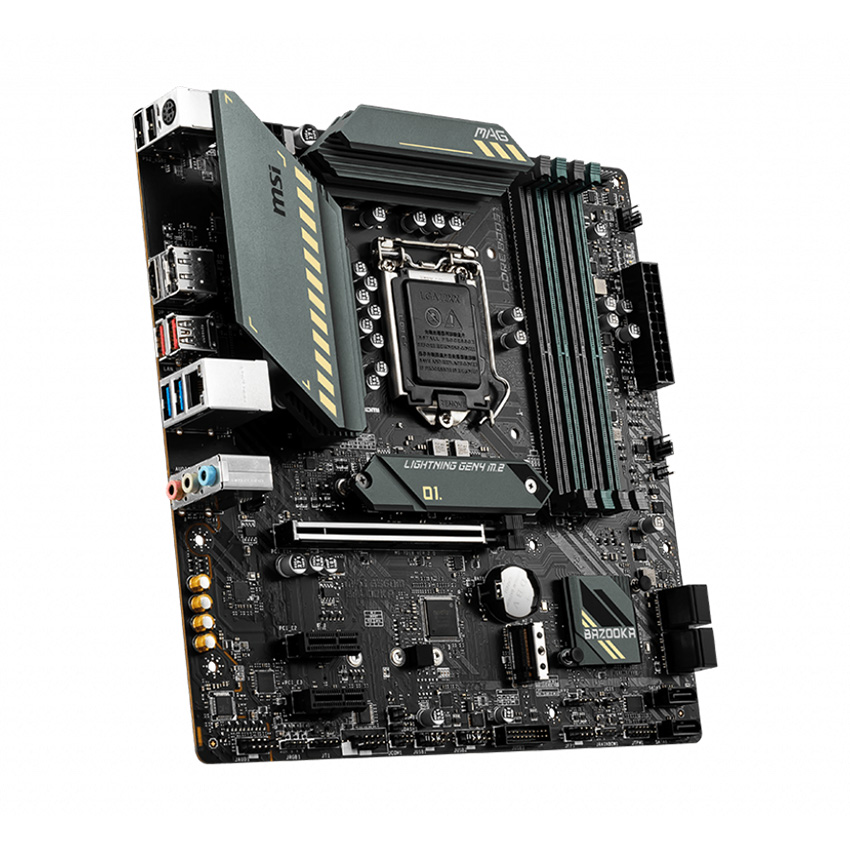

| Thương hiệu | MSI |
| Model | MAG B560M BAZOOKA |
| Kích cỡ | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| CPU hỗ trợ | Intel |
| Chipset | B560 |
RAM hỗ trợ | 4x DDR4 memory slots, hỗ trợ tối đa 128GB Hỗ trợ 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Hỗ trợ 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Tần số ép xung tối đa:
Hỗ trợ chế độ non-ECC, un-buffered memory Hỗ trợ chế độ Intel® Extreme Memory Profile (XMP) |
Khe cắm mở rộng | 1x PCIe x16 slot PCI_E1 (from CPU)
PCI_E2 & PCI_E3 (From B560 chipset) |
Ổ cứng hỗ trợ | 6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot
M2_2 slot 2 (from B560 chipset) Hỗ trợ PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices |
| Cổng kết nối (Internal) | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller connector |

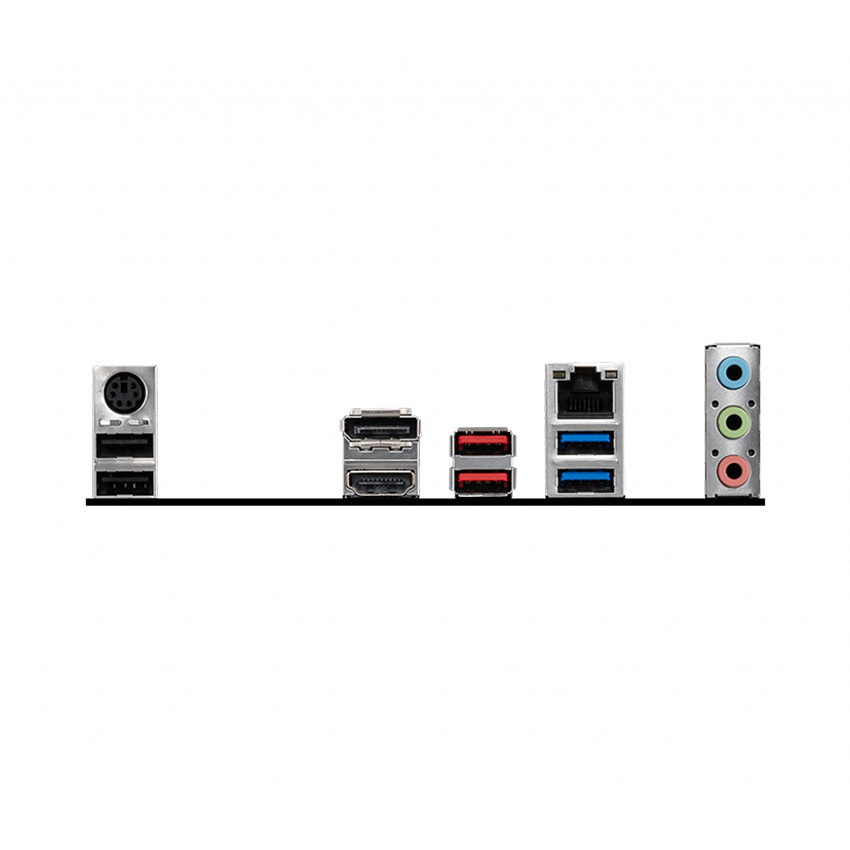

| Cổng kết nối (Back Panel) | 1 x HDMI 1 x PS2 1 x LAN port 1 x Audio connector 2 x USB 2.0 1 x DP 2 x USB 3.2 Gen 1 5Gbps Type A 2 x USB 3.2 Gen 2 10Gbps Type A |
| LAN / Wireless | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
Cổng USB | Intel® B560 Chipset
USB Hubs GL850G
|
