| Hãng sản xuất | ASUS |
| Chipset | Intel® B760 Chipset |
| Socket | LGA 1700 (Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors) |
| RAM | DDR4 - 2 x DIMM slots, Max. 64GB |
| Hỗ trợ tối đa RAM | 64 GB |
| Khe cắm PCI-E | 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot |
| Kết nối | 1 x Realtek 1Gb Ethernet |
| Khe cắm M.2 | 2 |
| Âm thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC |

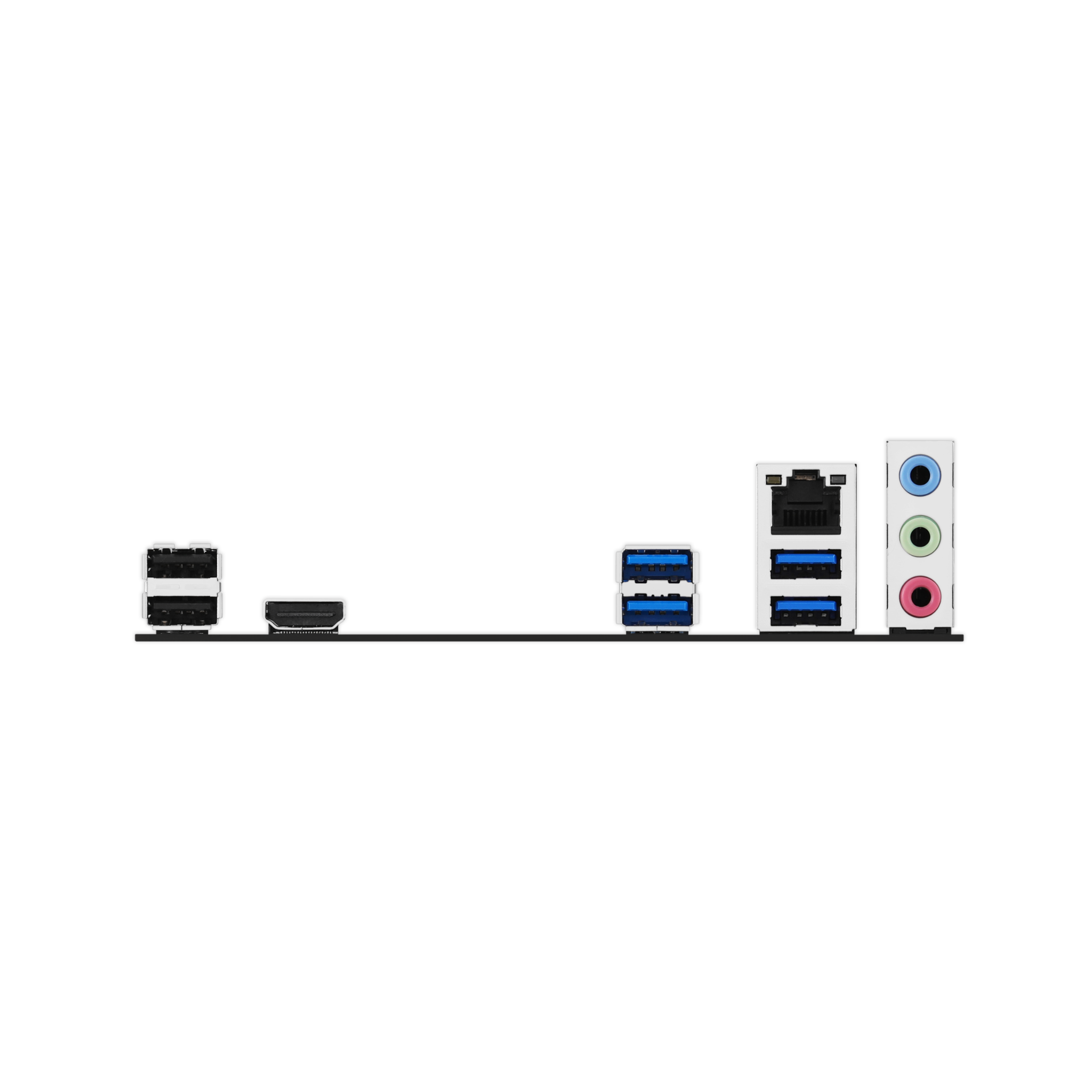

| Cổng I/O sau | 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| Cổng I/O nội bộ | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| USB | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)* Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Kích thước | micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Trọng lượng | - |
| Tính năng khác |
|
| Tương thích | Windows® 11, Windows® 10 64-bit |
