Chipset: Intel B760
Socket: Intel LGA 1700
Kích thước Main: M-ATX
Hỗ trợ CPU: Intel® Socket LGA 1700:Support 14th,13th and 12th Gen Series Processors
Khe cắm RAM: 4 khe ram
Loại RAM: DDR4
Ổ Cứng: Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports

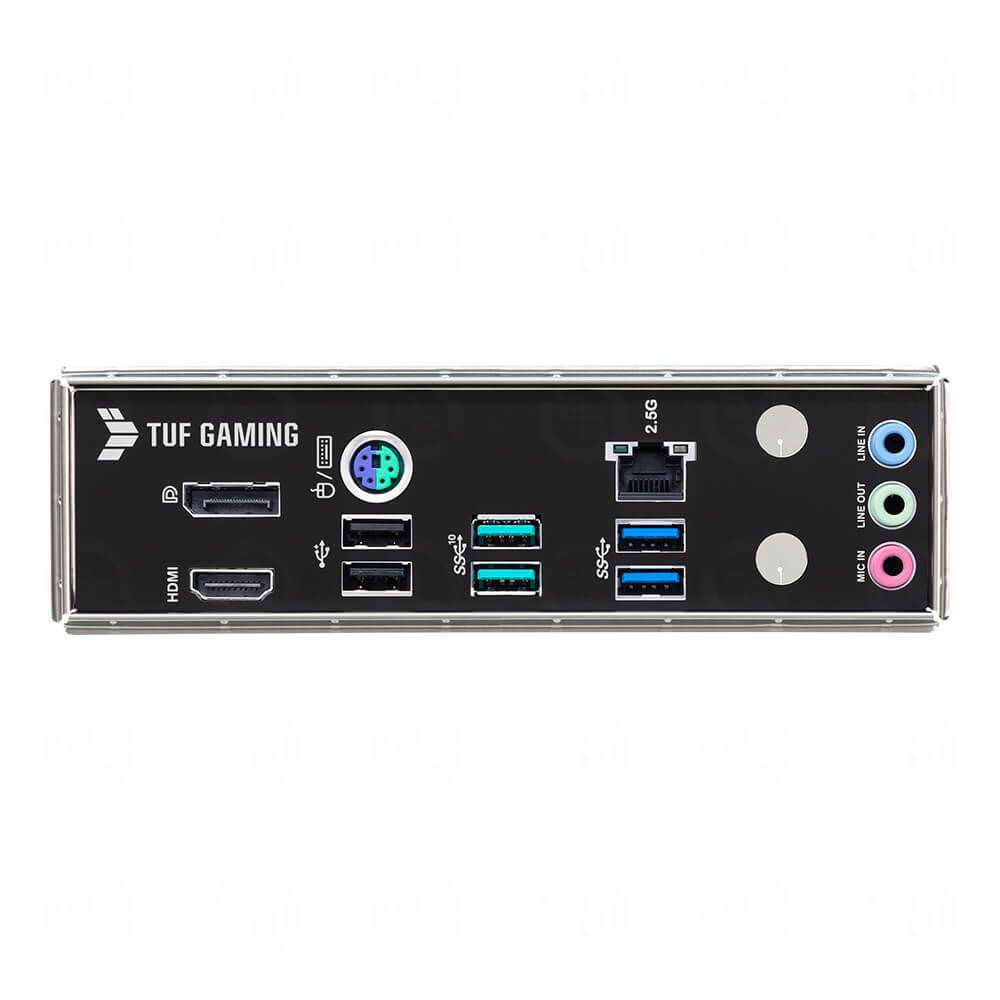

Cổng Kết Nối: 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek2.5Gb Ethernet port
3 x Audio jacks
1 x Vertical M.2 slot (Key E)
1 x PS/2 Keyboard/Mouse combo port
Kích Thước: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
