Chipset: Intel B560
Tích hợp sẵn Wifi
Socket: LGA1200 hỗ trợ CPU intel thế hệ 11 và thế hệ 10
Kích thước: microATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16
Khe cắm ổ cứng: 2 x M.2 slots and 6 x SATA 6Gb/s port
Tên Hãng | ASUS |

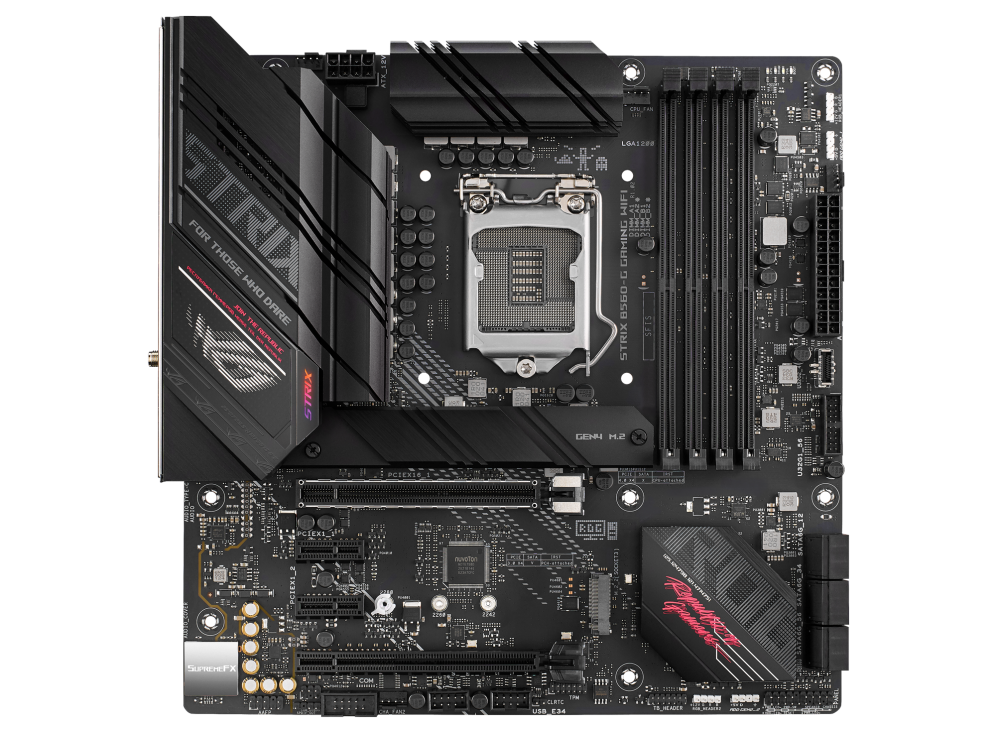

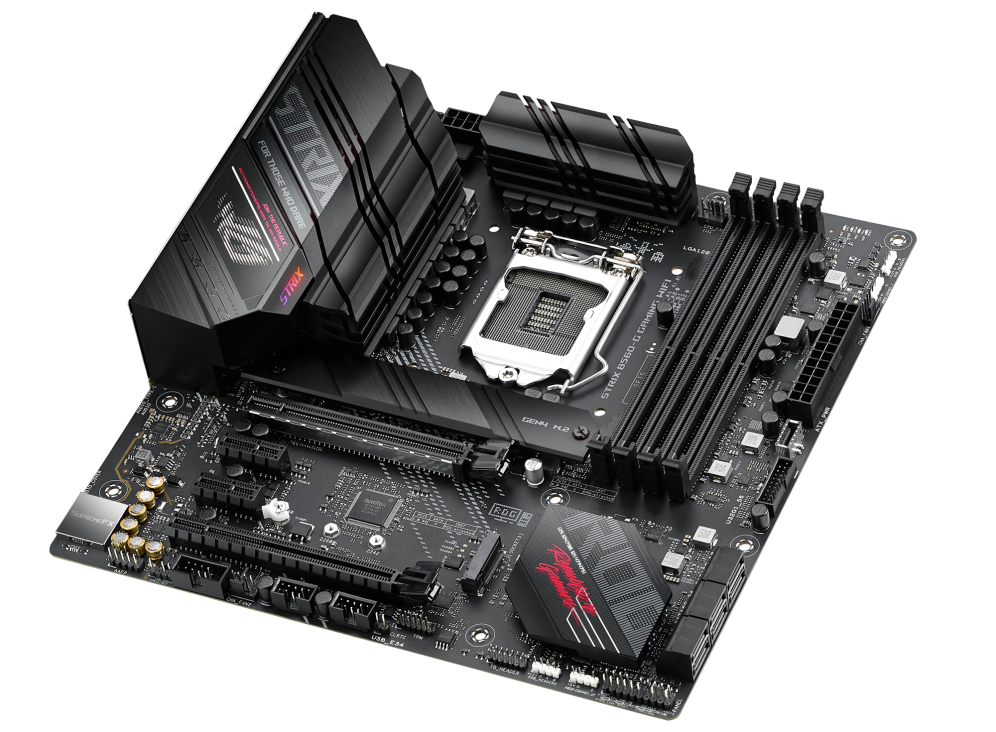

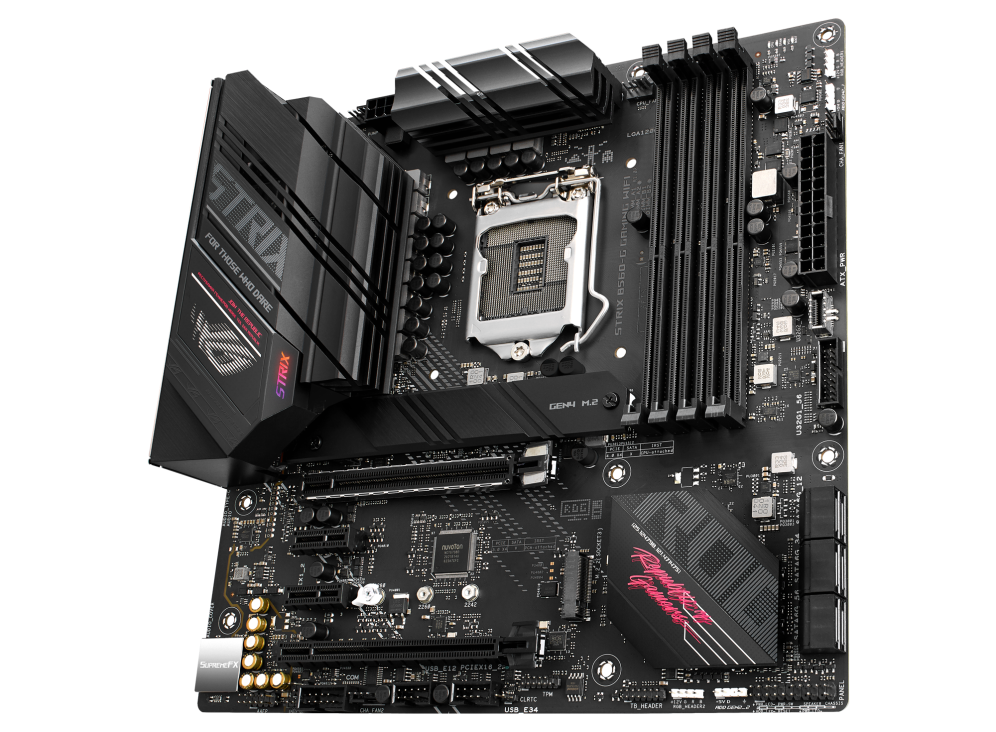

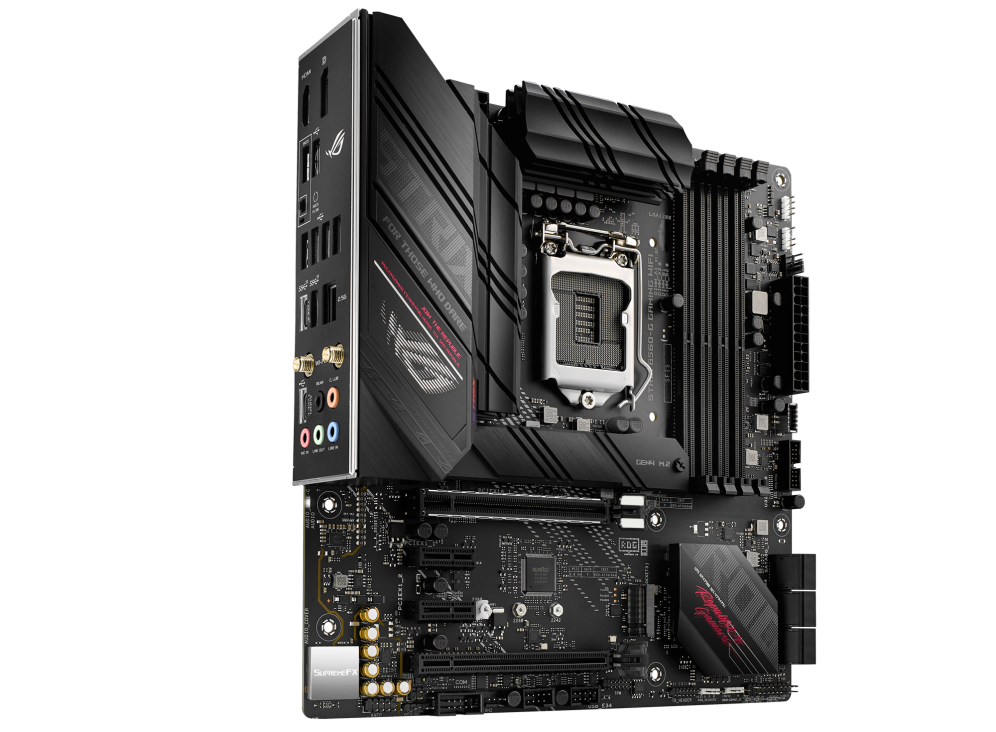

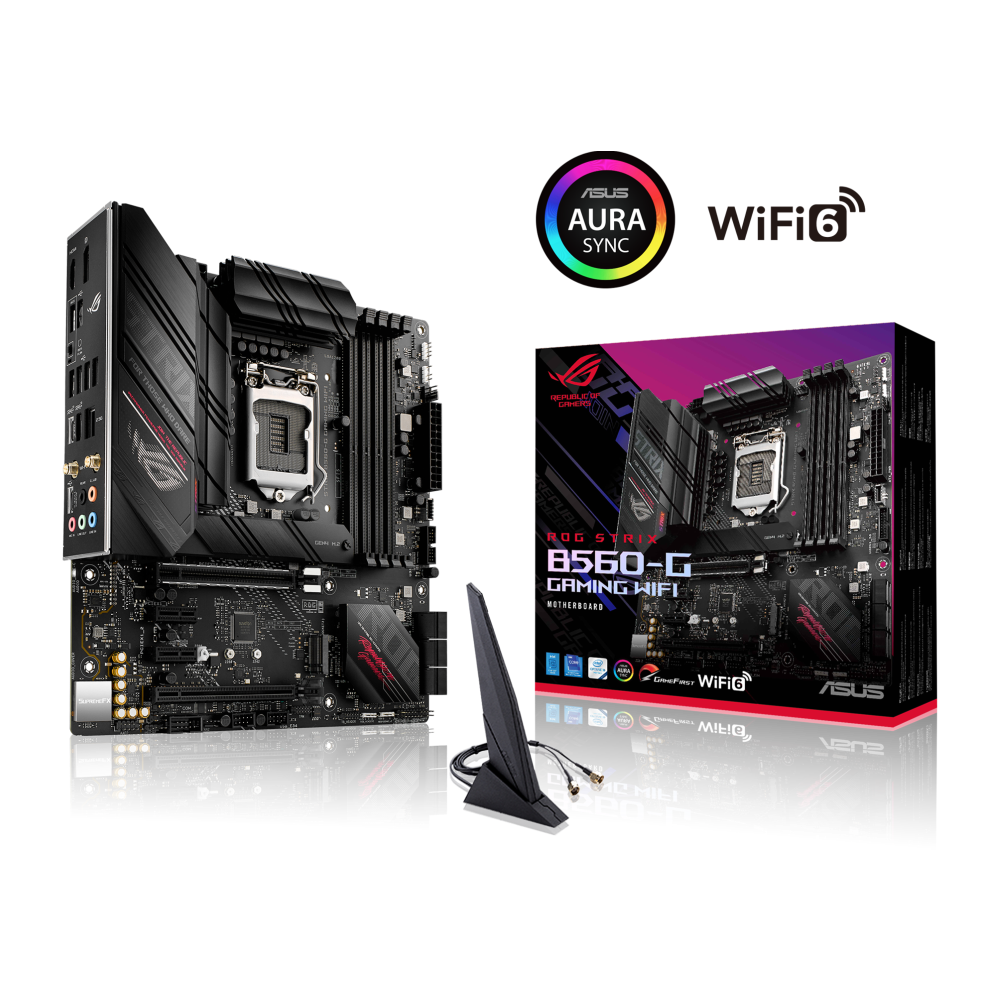

Model | ROG STRIX B560-G GAMING WIFI |
CPU hỗ trợ | Intel |
Chipset | B560 |
RAM hỗ trợ | Memory Channels:4DDR4 (Dual channel) Max Memory Size:128GB DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) /3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
Khe cắm mở rộng | 1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel® 11th processors support PCIe 4.0 x16 mode - Intel®10th processors support PCIe 3.0 x16 mode Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
Ổ cứng hỗ trợ | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports |
Cổng kết nối (Internal) | 1 x TB Header (for add-on TB card) 1 x Thunderbolt™ header |

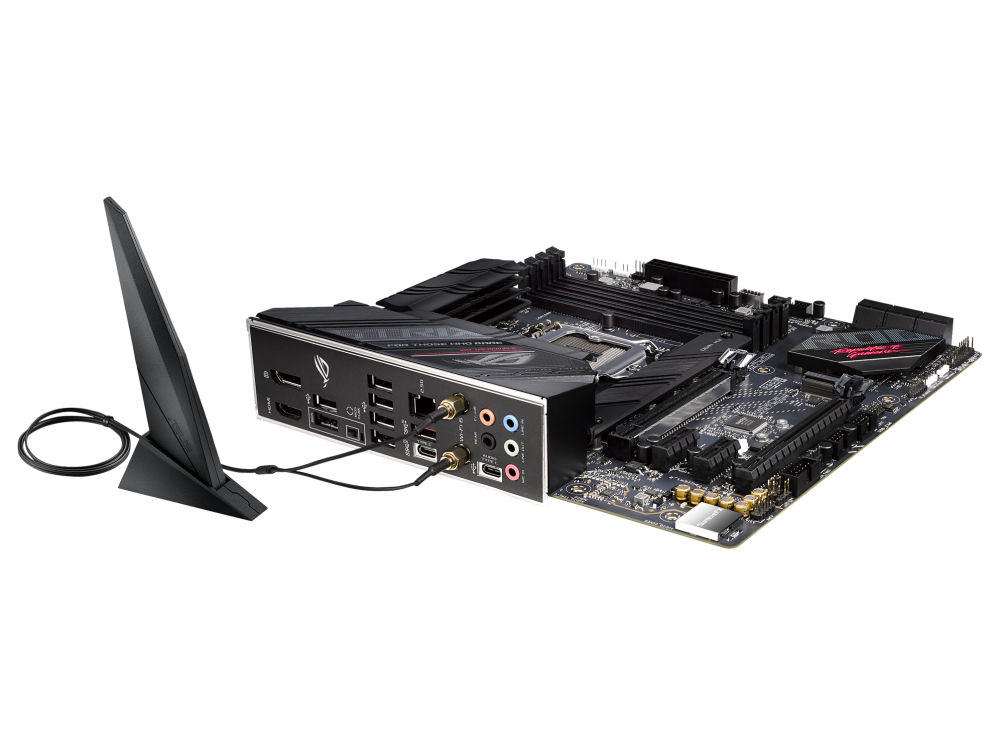

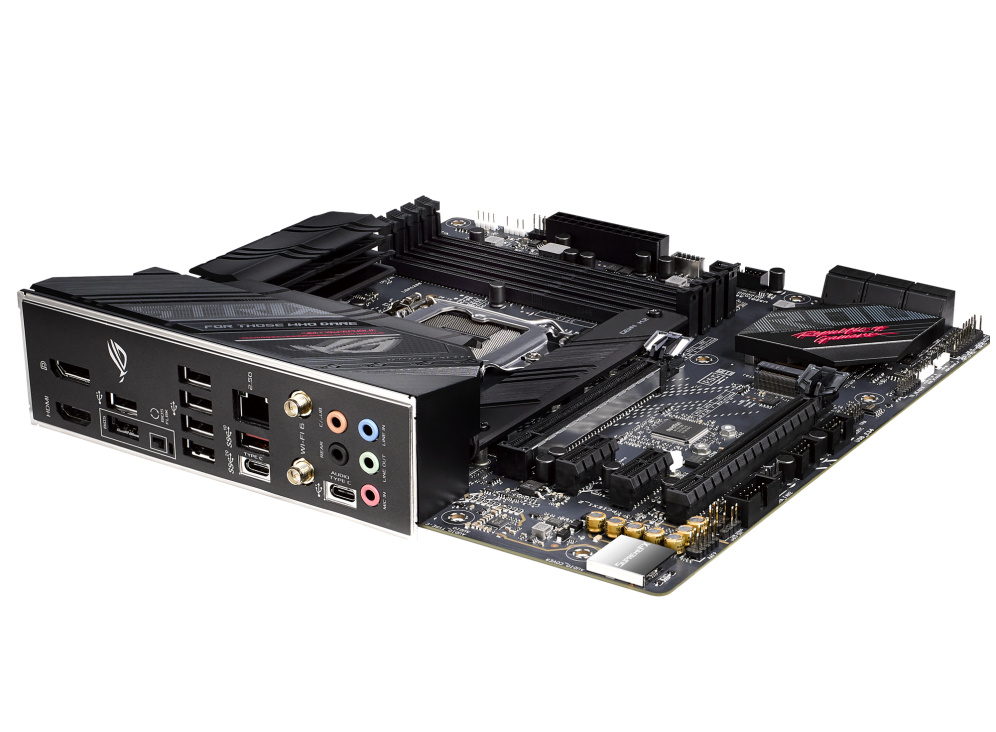

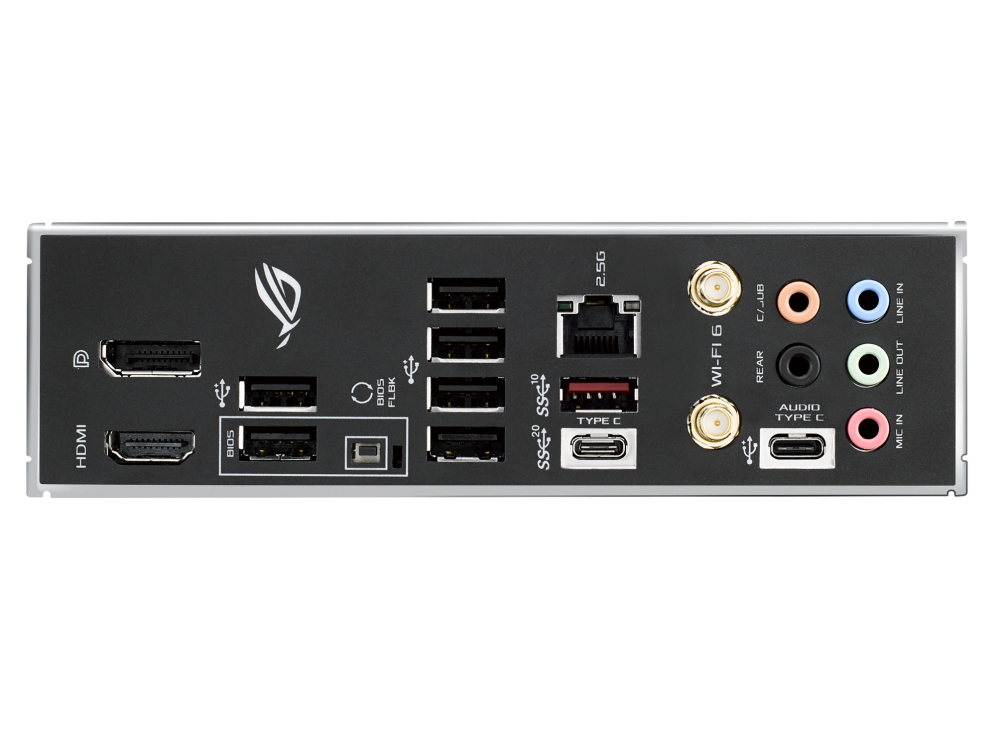

Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C®) 1 x HDMI™ port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button |
LAN / Wireless | LAN: 1 x Intel® 2.5Gb Ethernet ASUS LANGuard WIFI: Intel® Wi-Fi 6 |
Kích cỡ | microATX 24.4cm x 24.4cm |
| Bảo Hành | 36 Tháng |
