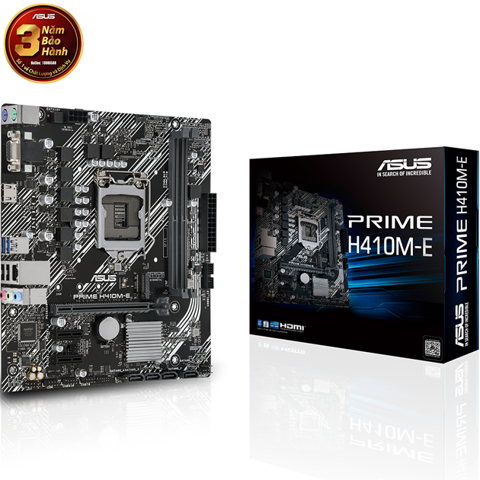

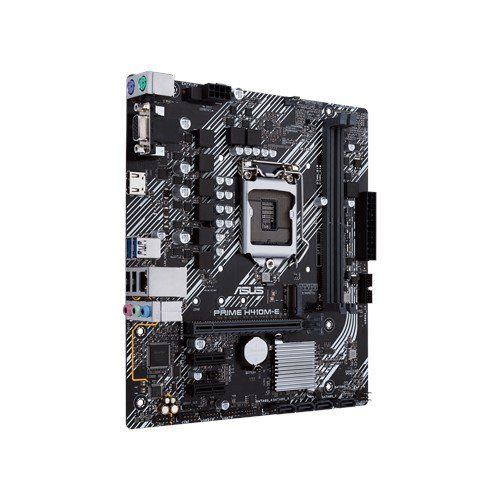

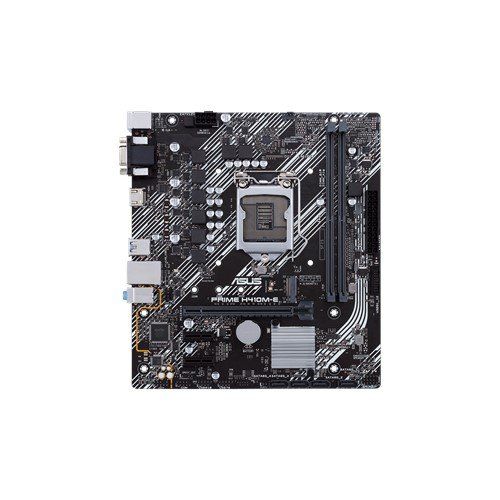

| Sản phẩm | Bo mạch chủ |
| Tên Hãng | ASUS |
| Model | PRIME H410M-E |
| CPU hỗ trợ | Intel |
| Chipset | H410 |
| RAM hỗ trợ | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz |
| Khe cắm mở rộng | 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x1 |
| Ổ cứng hỗ trợ | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1 4 x SATA 6Gb/s port(s) |
| Cổng kết nối (Internal) | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| Cổng kết nối (Back Panel) | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) |
| LAN / Wireless | Realtek® RTL8111H |
| Kích cỡ | mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
| Bảo Hành | 36 Tháng |
