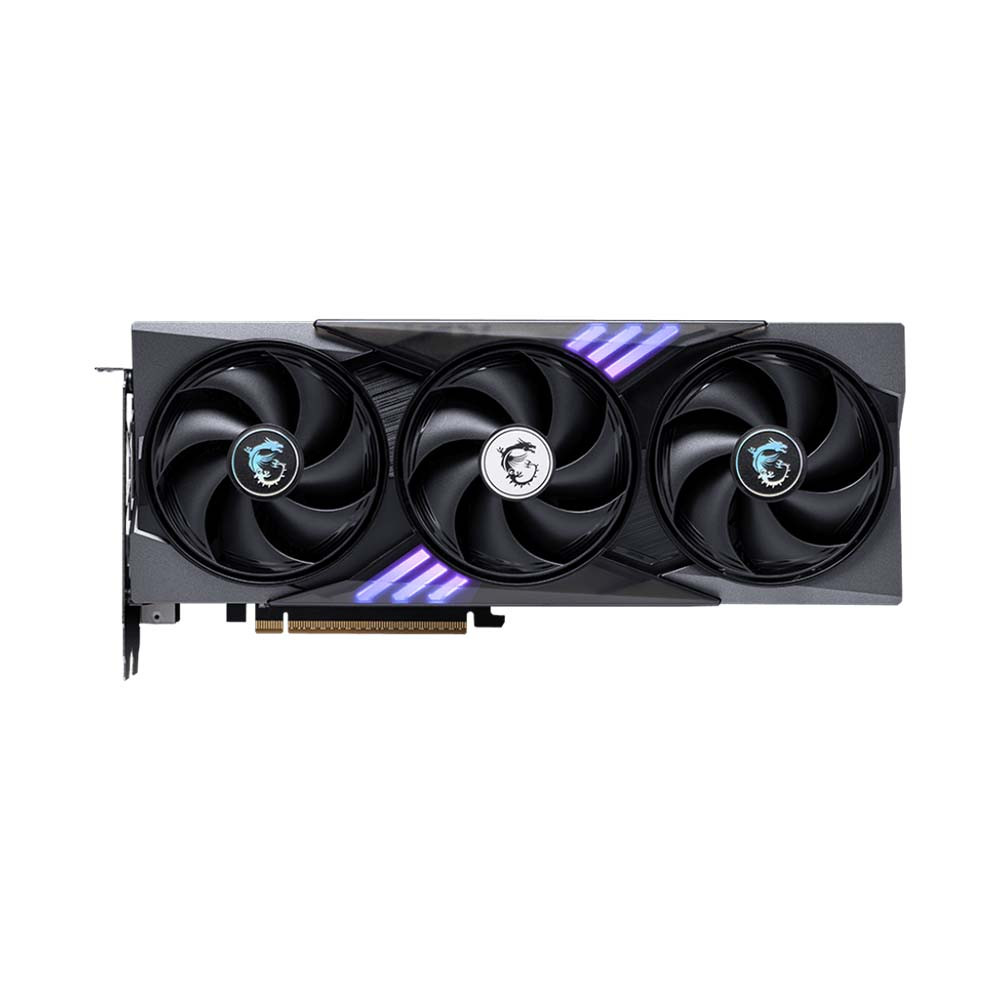

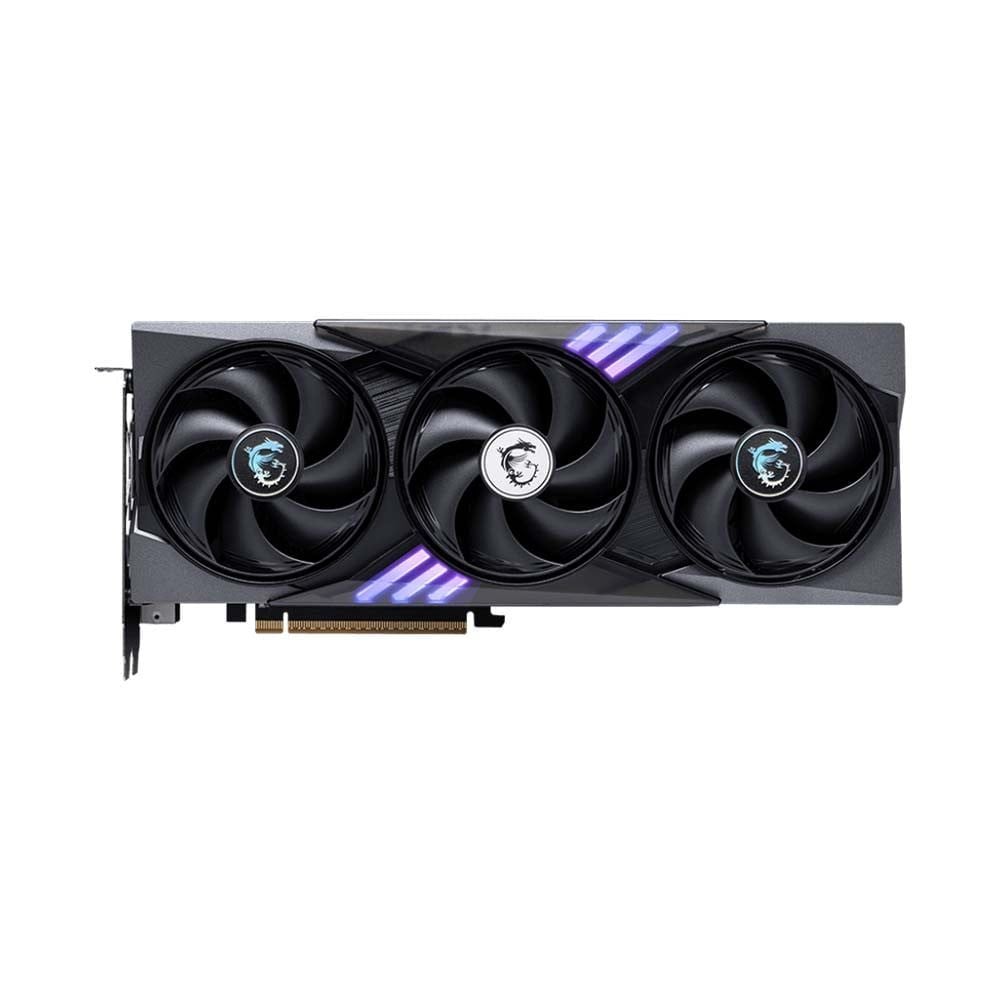

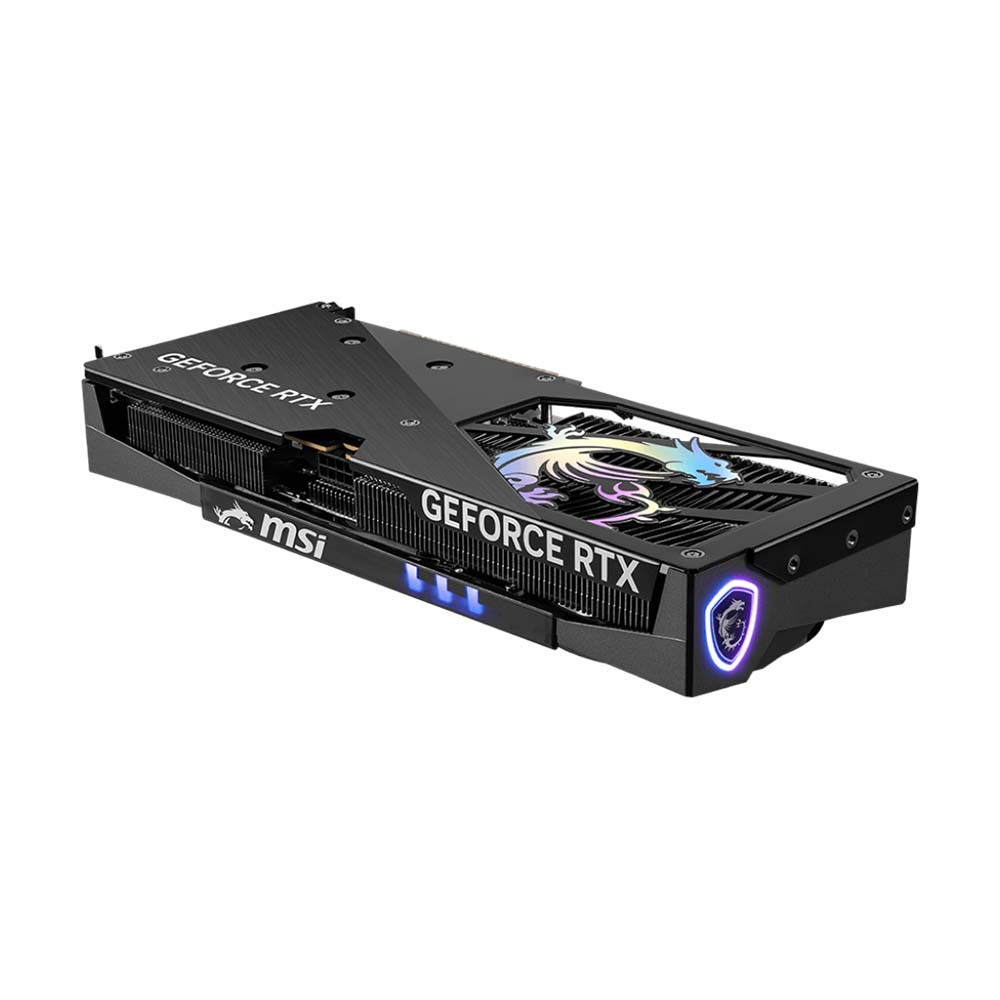

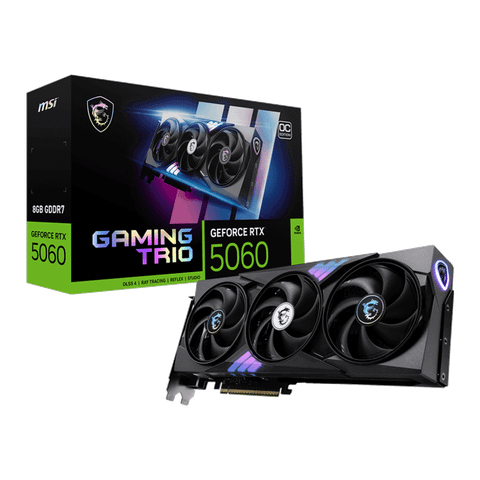

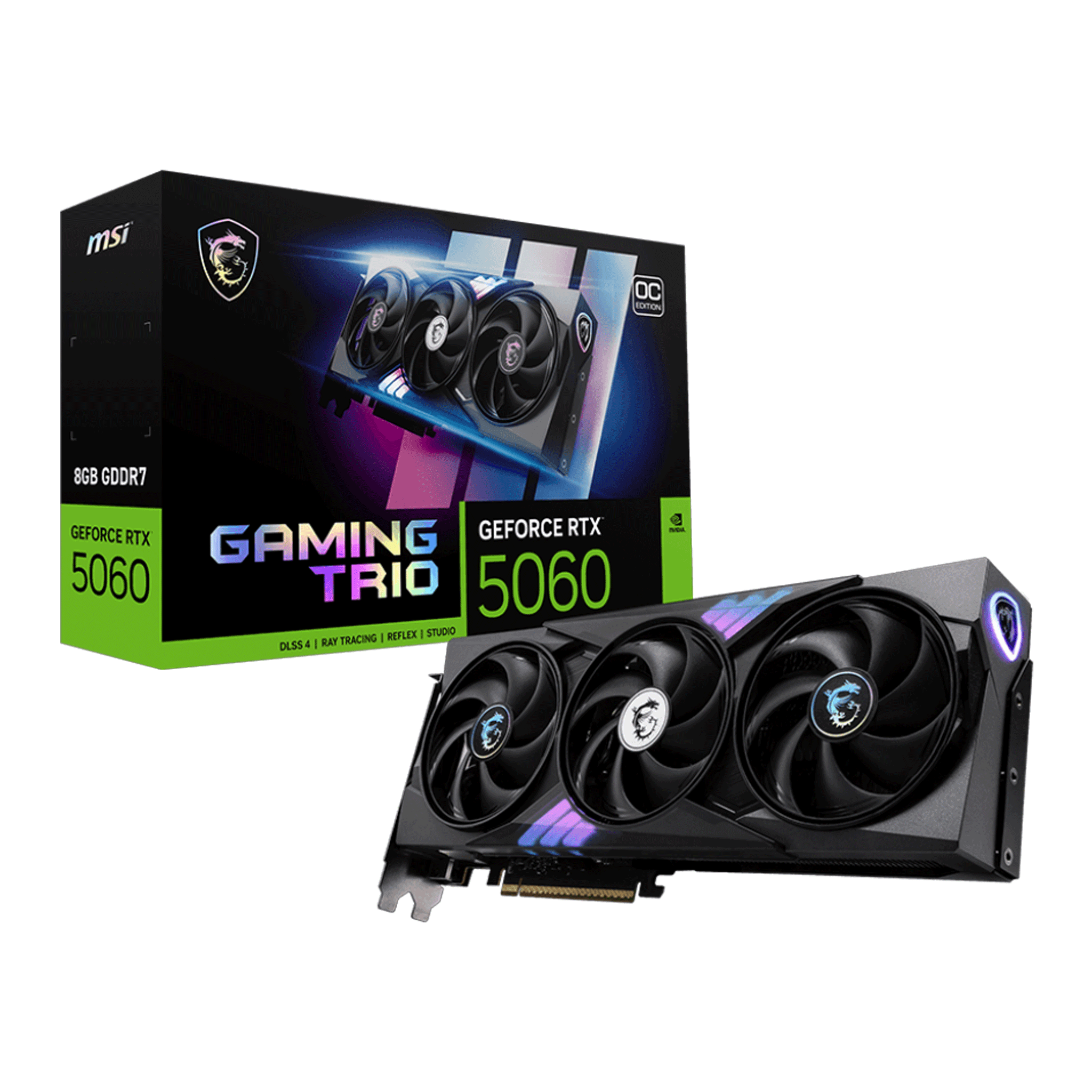

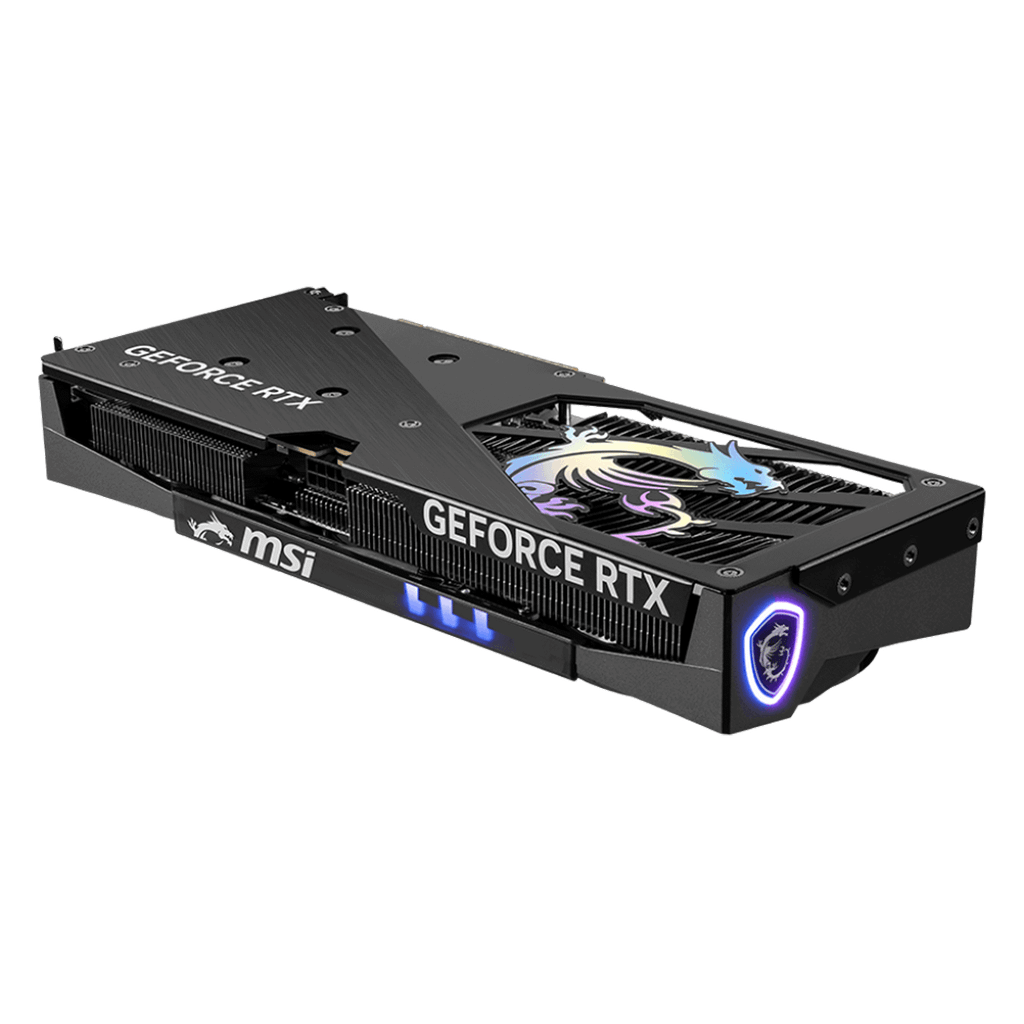

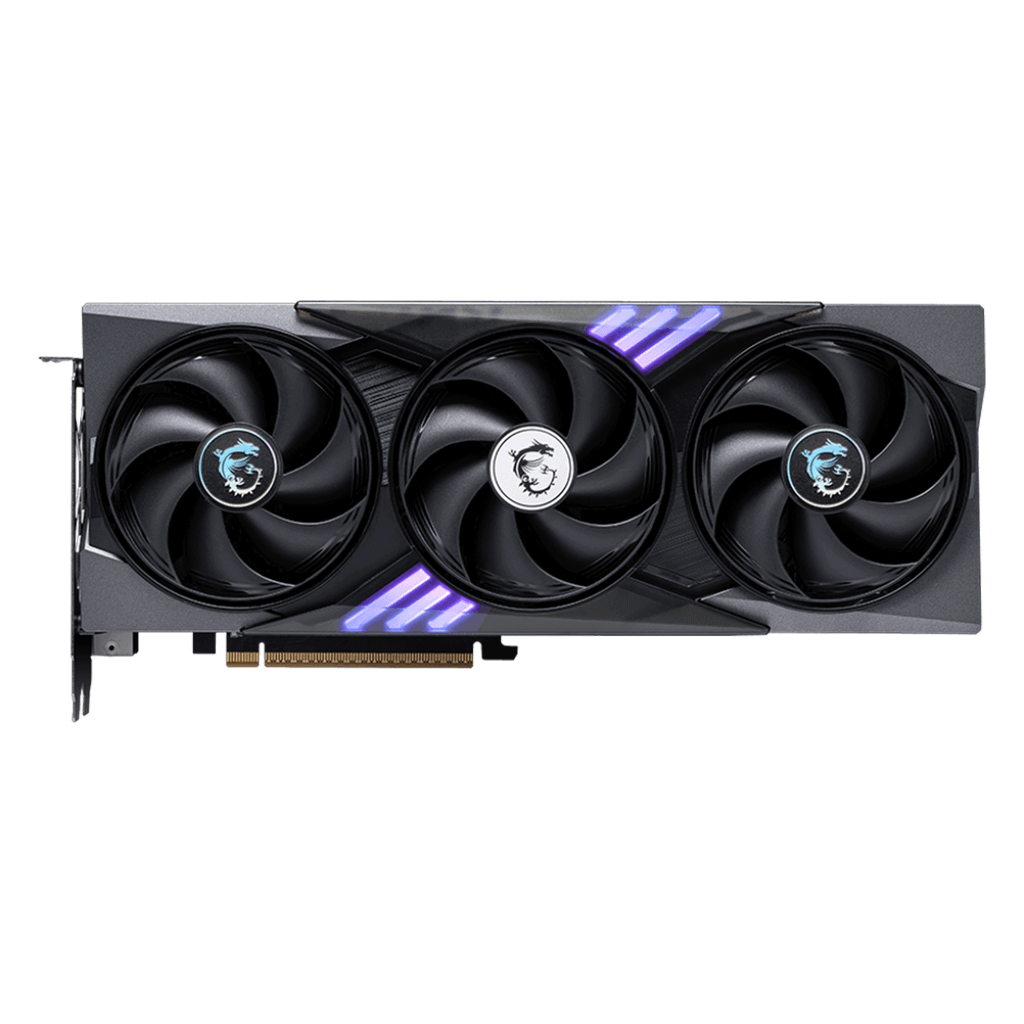

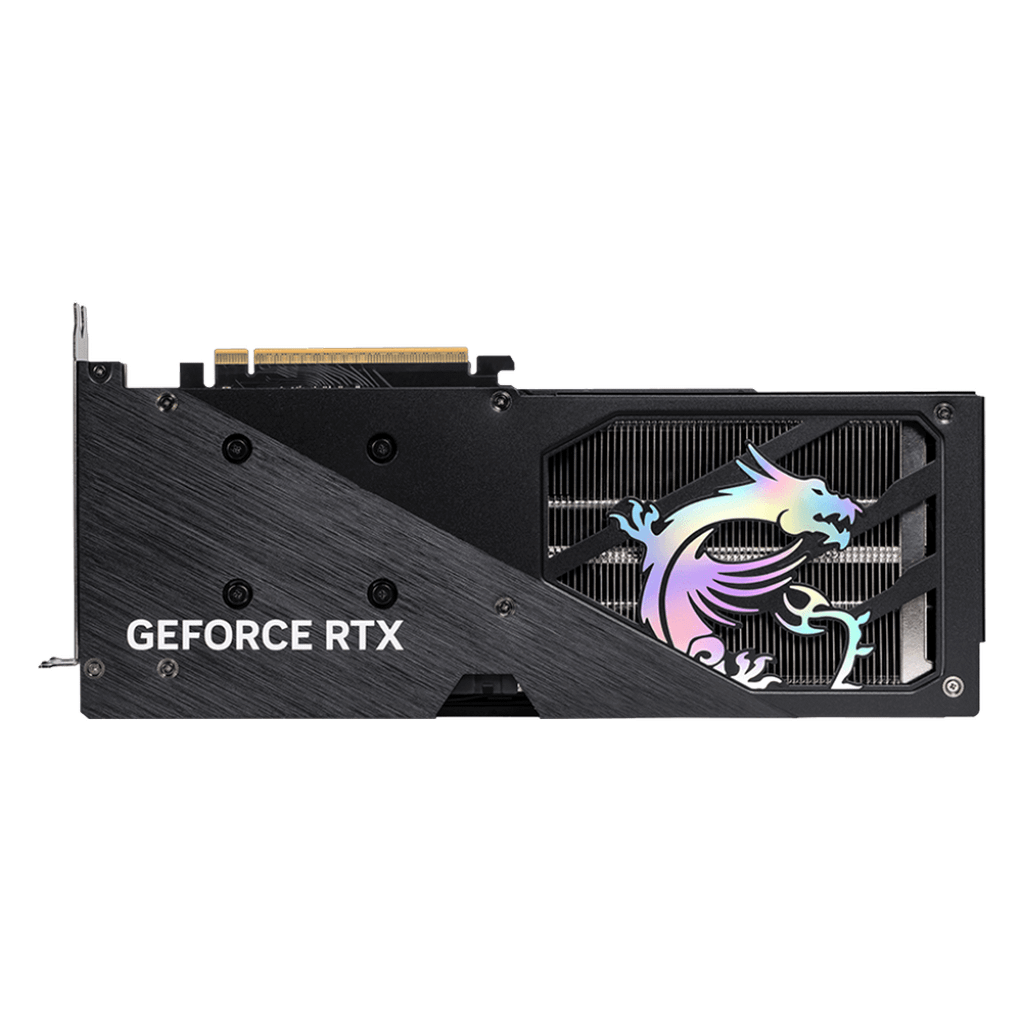

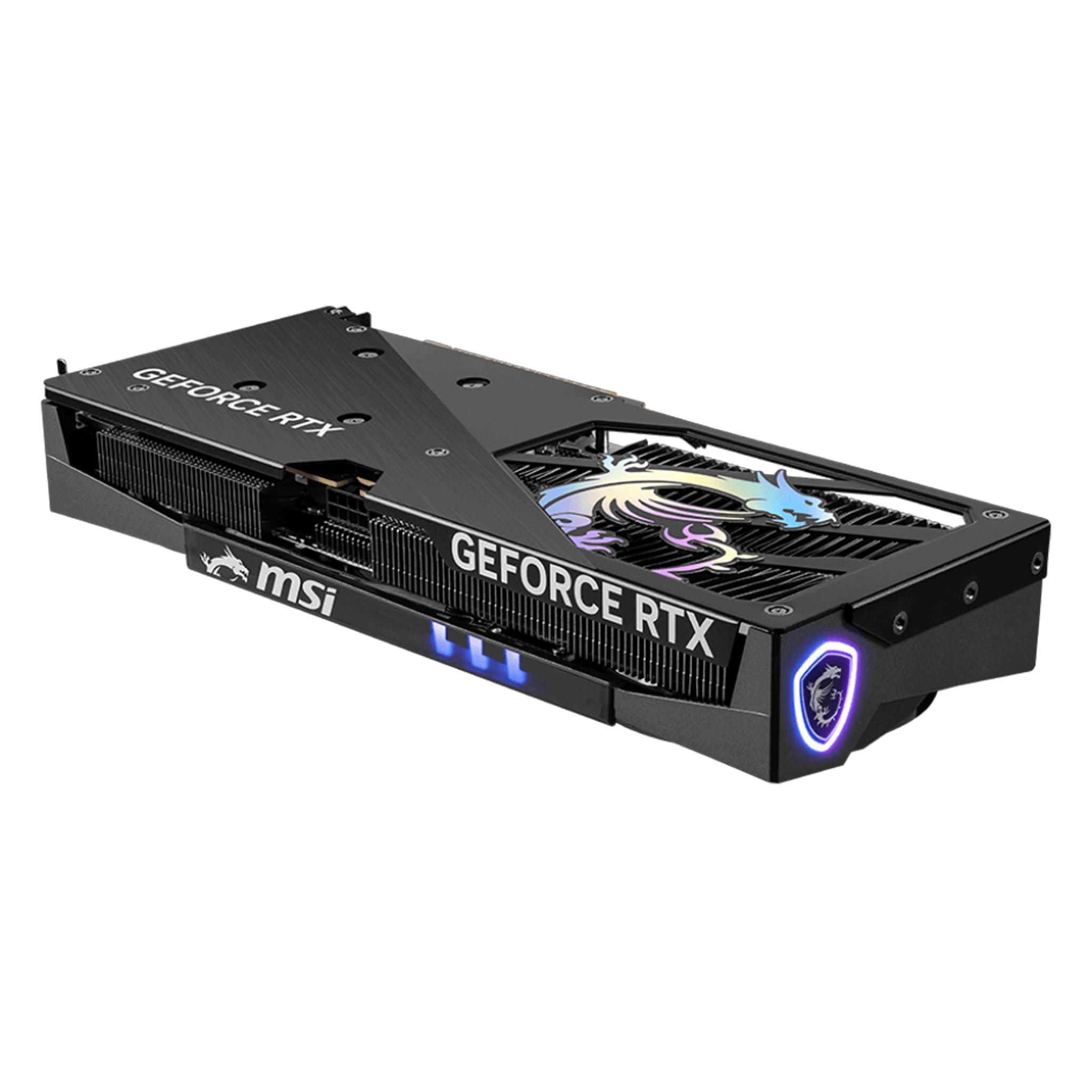

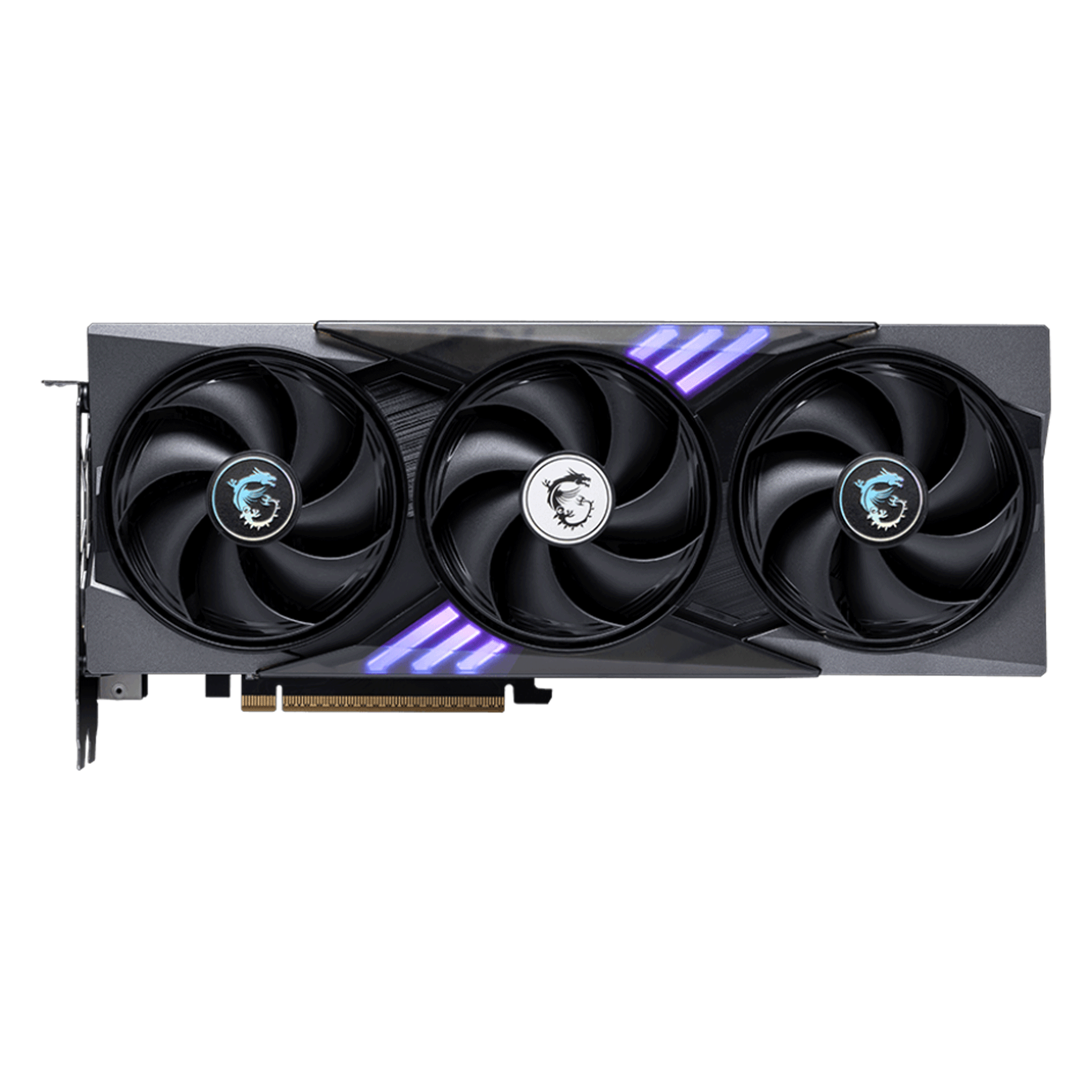

| Marketing Name | GeForce RTX™ 5060 8G GAMING TRIO OC |
| Model Name | G5060-8GTC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2640 MHz Boost: 2625 MHz |
| CUDA® CORES | 3840 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |

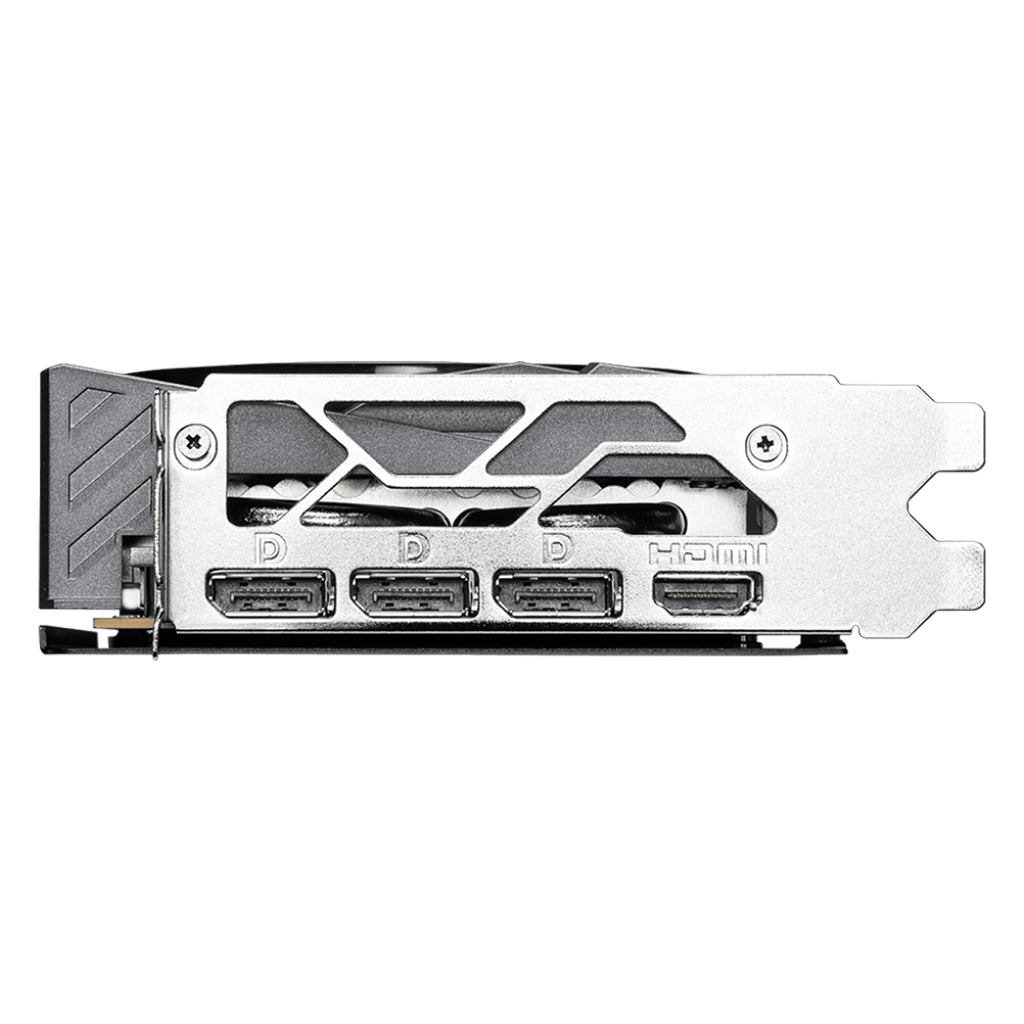

| Output | DisplayPort x 3 (v2.1b), HDMI™ x 1 (2.1b) |
| HDCP Support | Yes |
| Power consumption | 155 W |
| Power connectors | 8-pin x 1 |
| Recommended PSU | 550 W |
| Card Dimension (mm) | 300 x 125 x 44 mm |
| Weight (Card / Package) | 797 g / 1206 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
